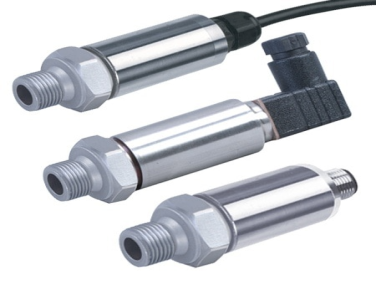

Metric, General Purpose, Stainless Steel Pressure Transducers PXM309-350G10V

  • NG # 03880-HW-Omega-051

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-performance gauge pressure sensor engineered for demanding industrial applications requiring precise, stable, and fast response measurements. It operates over a wide pressure range from 0 to 350 bar with exceptional static accuracy of ±0.25% FS BSL at 25 °C (including linearity, hysteresis, and repeatability).

Specification

Accuracy± 0.25 %
Accuracy Class0.1% to 0.25%
Accuracy DetailStatic Accuracy 350 mB to 700 bar: ± 0.25% FS BSL at 25ºC (includes linearity, hysteresis and repeatability)
BandwidthDC to 1 kHz
Burst Pressure2x Full Scale
Burst Pressure Note5X rated pressure
Cable Length1.5 m
Compensated Temperature, Max85 °C
Compensated Temperature, Min-20 °C
Electrical ConnectionCable
Electrical Connection Note1.5 m (5') 2 or 3-conductor cable, mA or 10V outputs, respectively.
Electrical Output0 to 10 V
Electrical Output NoteNone
Enclosure RatingsIP65
Insulation Resistance1 MΩ
Materials, Wetted17-4 Stainless Steel
Measurement Pressure TypeGauge
Measurement Pressure, Max350 bar
Measurement Pressure, Min0 bar
Operating Temperature, Max85 °C
Operating Temperature, Min-40 °C
Output SignalVoltage
Pressure Cycles10 million
Process Connection Size1/4 in
Process Connection TypeBSPP Male
Response Time1 ms
Shock50 g, 11 ms half sine
Stability± 0.25%
Stability NoteLong Term Stability (1 yr): ± 0.25% FS
Supply Power Note15 to 30 Vdc at 10 mA
Supply Voltage15 to 30 Vdc
Thermal Effect on Span error, Max± 1% gage
Thermal Effect on Zero error, Max± 1% gage
Vibration± 20 g
Weight150 g
