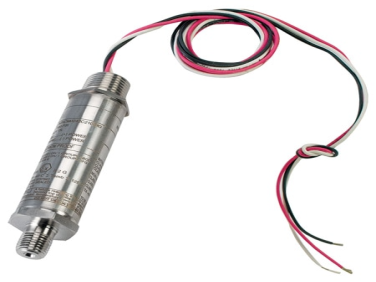

Get A QuoteThis is a rugged, high-accuracy gauge pressure transmitter engineered for demanding industrial environments. It delivers a precise 4–20 mA (2-wire) output, with total accuracy of ±0.5% of full scale (±0.40% BFSL), covering non-linearity, hysteresis, non-repeatability, zero offset, and span setting errors. The unit maintains excellent long-term stability (≤±0.25% span/year) and fast response (2 ms), making it suitable for real-time process control.
| Accuracy | ± 0.5 % |
| Accuracy Class | > 0.25% |
| Accuracy Detail | ± 0.5% TP; ± 0.40% BFSL includes non-linearity, hysteresis and non-repeatability, zero offset and span setting errors (add 0.05% for ranges above 5000 psi) |
| Additional Features 1 | None |
| Compensated Temperature, Max | 85 °C |
| Compensated Temperature, Min | -20 °C |
| Electrical Connection | 1/2 in NPT male Conduit with Cable |
| Electrical Output | 4 to 20 mA |
| Electrical Output Note | 4 to 20 mA(2 wire) |
| Enclosure Material | 304 Stainless Steel |
| Enclosure Ratings | IP65, NEMA Type 7, NEMA Type 9 |
| Fits Cable Diameter | 9 to 12 mm |
| Insulation Resistance | 100 MΩ |
| Materials, Wetted | 316 Stainless Steel |
| Measurement Pressure Type | Gauge |
| Measurement Pressure, Max | 200 psi |
| Measurement Pressure, Min | 0 psi |
| Operating Temperature, Max | 125 °C |
| Operating Temperature, Min | -40 °C |
| Output Signal | Current |
| Position Effect | ± 0.02% typical |
| Process Connection Note | 1/2 NPT male conduit fitting and 4.6 m (15') cable with flying lead termination |
| Process Connection Size | 1/4 in |
| Process Connection Type | NPT Male |
| Process Temperature, Max | 125 °C |
| Process Temperature, Min | -40 °C |
| Protection | Reverse polarity and mis-wire protected |
| Relative Humidity | 0 to 0.95 |
| Response Time | 2 ms |
| Stability | ≤± 0.25% |
| Stability Note | ≤± 0.25% span/year @ ref conditions (21°C/70°F) |
| Storage Temperature, Max | 125 °C |
| Storage Temperature, Min | -40 °C |
| Supply Power Note | 12 to 32 Vdc Vmin=12V+(0.022Ax loop res) |
| Supply Voltage | 12 to 32 Vdc |
| Thermal Effect on Span error, Max | 2% span |
| Thermal Effect on Zero error, Max | 2% span |
| Vibration | 100 g peak, 11 ms; Vibration Random: 10 g RMS, 20 to 2000 Hz; Vibration Sweep : 50 to 2000 Hz, 5 g peak |
| Weight | 254 g |
