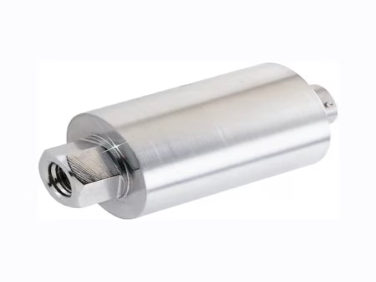

Pressure Transducers with Internal Shunt Resistor PX02C1-015AI

  • NG # 03882-HW-Omega-053

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-precision absolute pressure transmitter designed for demanding industrial applications requiring excellent stability, accuracy, and durability. With an accuracy of ±0.19% and repeatability of ±0.05% FSO, it ensures reliable and consistent measurements across a range of operating conditions. The sensor uses a 4-active-arm thick-film strain gauge bridge housed in a hermetically sealed chamber, enhancing performance in harsh environments.

Specification

Accuracy± 0.19 %
Accuracy Class0.1% to 0.25%
Additional Features 1None
Burst Pressure3x Full Scale
Burst Pressure Note300% of rated pressure
Compensated Temperature, Max71 °C
Compensated Temperature, Min16 °C
Electrical ConnectionMIL-26482-I 10-6P
Electrical Connection NotePTIH-10-6P connector (or equal) Mating connector (sold separately), order PT06F10-6S
Electrical Output4 to 20 mA
Electrical Output Note4 to 20 mA ± 10% adj
Hysteresis± 0.1% FSO
Linearity Error± 0.15%
Materials, Wetted17-4 Stainless Steel
Mating ConnectorMIL-26482-I 10-6S
Measurement Pressure TypeAbsolute
Measurement Pressure, Max15 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max121 °C
Operating Temperature, Min-46 °C
Output SignalCurrent
Process Connection Size1/4 in
Process Connection TypeNPT Male
Proof Pressure150% Full Scale
Repeatability Error± 0.05% FSO
Sensing Element4-active-arm Strain Gauge Bridge
Sensing Element Note4-active-arm bridge, using thick-film strain gages in a hermetically sealed chamber
Supply Voltage10 to 40 Vdc
Thermal Effect on Span error, Max0.009% FSO/°C
Thermal Effect on Zero error, Max0.009% FSO/°C, 0.009% FSO/°C
Weight388 g
Zero/Balance Error4 mA (+10%, -2% adj)
