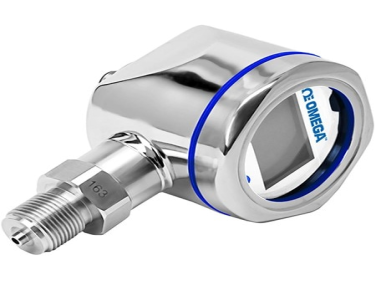

Rangeable Pressure Transmitters with Display PX3005-001GI

  • NG # 03889-HW-Omega-060

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This compound gauge pressure transmitter delivers high-precision measurement with an accuracy of ±0.2% (NLHR, at 20 °C ± 5 °C) and an accuracy class between 0.1% and 0.25%. It is designed for applications requiring both vacuum (-1 psi) and positive pressure (up to 1 psi) readings, making it ideal for sensitive low-pressure monitoring.

Specification

Accuracy± 0.2 %
Accuracy Class0.1% to 0.25%
Accuracy DetailAccuracy (NLHR, 20°C ± 5°C): ± 0.2TD% SPAN
Electrical ConnectionM12 4 pin Female
Electrical Output4 to 20 mA
Electrical Output Note4 to 20 mA Two wire
Measurement Pressure TypeCompound Gauge
Measurement Pressure, Max1 psi
Measurement Pressure, Min-1 psi
Operating Temperature, Max70 °C
Operating Temperature, Min-20 °C
Output SignalCurrent
Process Connection Size1/4 in
Process Connection TypeNPT Male
Process Temperature, Max120 °C
Process Temperature, Min-40 °C
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
