NG # 03306-HW-MAXO-015

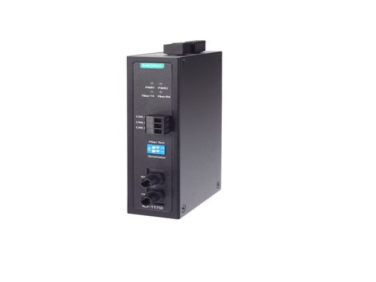

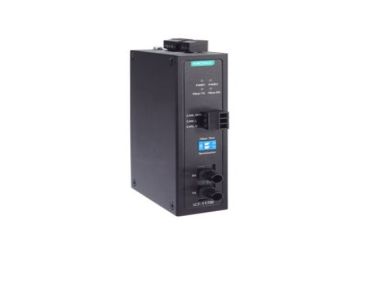

In the ever-evolving industrial sector, the need for efficient and reliable data communication is critical. The MOXA ICF-1170I Series Fieldbus-to-Fiber Converters are designed to address this need by converting Fieldbus signals to fiber optic signals. These converters ensure secure, long-distance communication while enhancing data integrity and noise immunity, making them indispensable in various industrial environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteSupports data transmission up to 45 km with single-mode fiber.
Fiber optic transmission is immune to electromagnetic interference (EMI) and radio frequency interference (RFI).
Ensures continuous operation with dual power inputs.
Reliable performance in temperatures ranging from -40 to 75°C.
Automatically adjusts to the baud rate of the connected Profibus device.
| Specification | Details |
|---|---|
| Serial Interface | |
| Optical Fiber | 100BaseFX ports (multi-mode ST connector) |
| CAN Interface | |
| Isolation | 2 kV (built-in) |
| No. of Ports | 1 |
| Signals | CAN_L, CAN_H, CAN Signal GND |
| Terminator | N/A, 120 ohms (by DIP) |
| Power Parameters | |
| Input Current | 221 mA @ 12 to 48 VDC |
| Power Consumption | 221 mA @ 12 to 48 VDC |
| Input Voltage | 12 to 48 VDC |
| No. of Power Inputs | 2 |
| Overload Current Protection | Supported |
| Power Connector | Terminal block (for DC models) |
| Physical Characteristics | |
| Housing | Metal |
| IP Rating | IP30 |
| Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 178 g (0.39 lb) |
| Installation | DIN-rail mounting |
| Environmental Limits | |
| Operating Temperature | ICF-1170I-M-ST: 0 to 60°C (32 to 140°F) ICF-1170I-M-ST-T: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 1 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF |
| Safety | EN 62368-1, UL 508 |
| Environmental Testing | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3 |
| Vibration | IEC 60068-2-6 |
| MTBF | |
| Time | 792,085 hrs |
| Standards | Telcordia (Bellcore), GB |
