NG # 03303-HW-MAXO-012

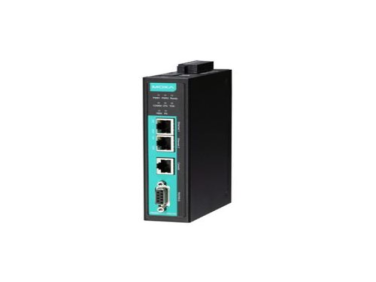

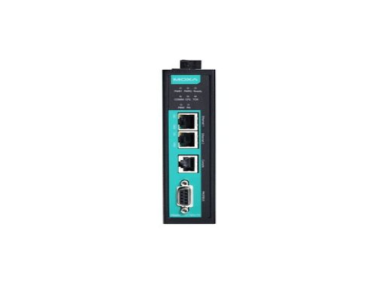

The MOXA MGate 5102-PBM-PN Series PROFINET Gateways are a superior choice for integrating PROFIBUS and PROFINET networks. Their reliable performance, advanced features, and ease of use make them an excellent solution for various industrial applications. By choosing MOXA MGate 5102-PBM-PN Series, you ensure seamless network integration, enhanced communication efficiency, and robust security for your industrial automation systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFirstly, the MOXA MGate 5102-PBM-PN Series excels in its core function of bridging PROFIBUS and PROFINET networks. This capability ensures smooth and reliable data communication between these two protocols, which is essential for modern industrial automation systems.
Moreover, these gateways are designed with user-friendly configuration and management tools. The web-based interface allows for straightforward setup and monitoring, reducing the time and effort required for deployment.
Transitioning to performance, the MOXA MGate 5102-PBM-PN Series offers high stability and robust performance, even in demanding industrial environments. The gateways support up to 4000 PROFIBUS DP slaves and can handle large amounts of data with ease.
Furthermore, advanced diagnostic tools are integrated into the MOXA MGate 5102-PBM-PN Series. These tools help in identifying and troubleshooting network issues quickly, ensuring minimal downtime and maintaining operational efficiency.
In today’s connected industrial environments, security is a critical concern. These gateways come with enhanced security features, including access control and data encryption, to protect your network from unauthorized access and data breaches.
Additionally, the MOXA MGate 5102-PBM-PN Series features a compact and durable design, making it suitable for various industrial settings. The rugged construction ensures that the gateways can withstand harsh conditions, including extreme temperatures and electromagnetic interference.
For industrial automation applications, the MOXA MGate 5102-PBM-PN Series provides seamless integration of PROFIBUS and PROFINET networks. This integration enhances communication efficiency and reliability, critical for automated manufacturing processes.
In the power and energy sectors, these gateways facilitate the efficient management of energy distribution systems. By ensuring reliable data communication between different network protocols, they help optimize energy usage and enhance system reliability.
In transportation and infrastructure projects, the MOXA MGate 5102-PBM-PN Series ensures robust network connectivity. Whether it’s for traffic management systems or railway communication networks, these gateways offer reliable and secure data transfer.
The oil and gas industry can greatly benefit from the MOXA MGate 5102-PBM-PN Series. These gateways provide a reliable communication bridge in complex industrial environments, ensuring seamless data flow and enhancing operational safety.
| Category | Specification |
|---|---|
| CPU | 32-bit Arm Core |
| Memory | Flash: 2 MB SDRAM: 4 MB microSD Slot: Up to 32 GB (SD 2.0 compatible) |
| Input/Output Interface | Configurable DIO Channels (by software): 1 Digital Input Channels: 1 Digital Output Channels: 1 |
| Ethernet Interface | 10/100BaseT(X) Ports (RJ45 connector): 2 (auto MDI/MDI-X connection) Magnetic Isolation Protection: 1.5 kV (built-in) |
| Ethernet Software Features | Configuration Options: Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client MIB: RFC1213, RFC1317 Time Management: NTP Client Industrial Protocols: PROFINET IO Device |
| Security Functions | Authentication: Local database Encryption: HTTPS, AES-128, AES-256, SHA-256 Security Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3) |
| Serial Interface | Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) Industrial Protocols: PROFIBUS DP-V1 Master Serial Standards: TTL Operation Modes: MiiNePort E1 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode MiiNePort E1-SDK: Real COM mode, Ethernet Modem mode, Real COM mode, TCP Client, TCP Server, UDP mode, RFC2217 Baudrate: MiiNePort E1 Series: 50 bps to 230.4 kbps MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: None, RTS/CTS, XON/XOFF |
| PROFIBUS Interface | Industrial Protocols: PROFIBUS DP No. of Ports: 1 Connector: DB9 female Baudrate: 9600 bps to 12 Mbps Isolation: 2 kV (built-in) Signals: PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V Mode: DP-V1 Master Input Data Size: 1024 bytes Output Data Size: 1024 bytes |
| PROFINET | Mode: IO Device Max. No. of IO Controller Connections: 1 (for read/write) Input Data Size: 1024 Output Data Size: 1024 |
| Power Parameters | Input Voltage: 12 to 48 VDC Input Current: 430 mA @ 12 VDC Power Connector: Screw-fastened Euroblock terminal |
| Relays | Contact Current Rating: Resistive load: 2 A @ 30 VDC |
| Physical Characteristics | Housing: Metal IP Rating: IP30 Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in) Weight: 500 g (1.10 lb) |
| Environmental Limits | Operating Temperature: MGate 5102-PBM-PN: 0 to 60°C (32 to 140°F) MGate 5102-PBM-PN-T: -40 to 75°C (-40 to 167°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class B EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF Safety: IEC 60950-1, EN 62368-1, UL 508 Hazardous Locations: ATEX, Class I Division 2, IECEx Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6, IEC 60068-2-64 |
| MTBF | Time: 980,417 hrs Standards: Telcordia SR332 |
