NG # 03325-HW-MAXO-034

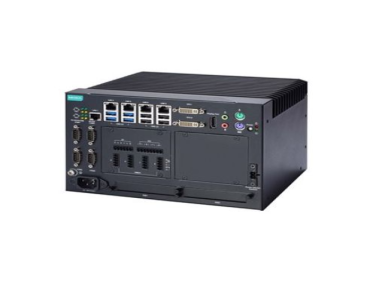

The MOXA MC-7410-C1 Industrial Computing Device industrial computing device is a standout choice for industries requiring robust, reliable, and high-performance computing solutions. Its advanced features, durable design, and extensive connectivity options make it a superior product in the market. Investing in the MOXA MC-7410-C1 means enhanced productivity, minimized downtime, and a cost-effective solution for your industrial automation needs.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFirstly, the MOXA MC-7410-C1 is equipped with a powerful Intel® Core™ i7 processor, ensuring exceptional computational speed and reliability. This feature makes it perfect for tasks that require significant processing power.
Additionally, the device is designed to withstand the toughest industrial conditions. Its rugged construction ensures long-term durability, even in extreme environments.
Moreover, the MOXA MC-7410-C1 offers extensive connectivity options, including multiple USB ports, serial ports, and Ethernet interfaces. This wide range of connectivity options allows seamless integration with various industrial systems.
Furthermore, the MOXA MC-7410-C1 prioritizes security with advanced measures such as TPM 2.0. These features safeguard your data, ensuring it remains secure and protected.
Equally important, the device is designed for easy maintenance and scalability. Its modular design allows for quick and simple upgrades, reducing downtime and enhancing operational efficiency.
In manufacturing automation, the MOXA MC-7410-C1 excels. Its high processing power and durable design make it ideal for controlling machinery and managing production lines efficiently.
For the oil and gas industry, where conditions are often extreme, the MOXA MC-7410-C1’s ruggedness and reliability are invaluable. It ensures consistent performance and reduces the risk of operational failures.
In transportation systems, the MOXA MC-7410-C1 provides reliable performance and seamless integration. Its extensive connectivity options are particularly beneficial for these applications.
For energy management, the MOXA MC-7410-C1 helps optimize operations. Its advanced features and reliable performance ensure efficient energy usage and management.
| Component | Details |
|---|---|
| CPU | Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz) |
| System Chipset | Mobile Intel® QM170 Chipset |
| Graphics Controller | Intel® HD Graphics 510 |
| System Memory Slot | SODIMM DDR4 slot x 2 |
| Supported OS | Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA |
| Linux Debian 9 | |
| Note: OS available by CTOS | |
| Storage Slot | 2.5″ HDD/SSD slots x 2 |
| Computer Interface | |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5 |
| Serial Ports | RS-232 ports x 2 (DB9 male) |
| RS-232/422/485 ports x 2, software selectable (DB9 male) | |
| USB 2.0 | USB 2.0 hosts x 5, type-A connectors |
| USB 3.0 | USB 3.0 hosts x 4, type-A connectors |
| Audio Input/Output | Line in x 1, Line out x 1, 3.5 mm phone jack |
| Video Input | DVI-D x 1, 29-pin DVI-D connector (female) |
| DVI-I x 1, 29-pin DVI-I connector (male) | |
| Video Output | DisplayPort x 1 |
| PS/2 | Keyboard PS/2 x 1 + Mouse PS/2 x 1 |
| Relays | |
| Connector | Screw-fastened Euroblock terminal |
| Contact Current Rating | Resistive load: 2 A @ 30 VDC |
| Contact Resistance | 50 milli-ohms (max.) |
| Initial Insulation Resistance | 1000 mega-ohms (min.) @ 500 VDC |
| Mechanical Endurance | 100,000,000 operations |
| Minimum Permitted Load | 20 A @ 30 VDC |
| LED Indicators | |
| System | Power x 1 |
| Storage x 1 | |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Serial Interface | |
| Baudrate | 50 bps to 115.2 kbps |
| Connector | DB9 male |
| Data Bits | 5, 6, 7, 8 |
| Flow Control | ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF |
| Isolation | None |
| Parity | None, Even, Odd, Space, Mark |
| NMEA Interface | NMEA 0183: RS-422 |
| Baudrate: 4800 bps | |
| Data Bits: 8 | |
| Handshake: None | |
| Optical Isolation Protection: 3 kV | |
| Parity: None | |
| Stop Bits: 1, 1.5, 2 | |
| Power Parameters | |
| Power Consumption | 100 W |
| Input Voltage | 24 VDC |
| Power Connector | Terminal block (for DC models) |
| Reliability | |
| Automatic Reboot Trigger | Built-in WDT |
| Physical Characteristics | |
| Weight | 5500 g (12.12 lb) |
| Dimensions (with ears) | 240 x 209 x 125 mm (9.45 x 8.23 x 4.92 in) |
| Housing | Metal |
| Environmental Limits | |
| Operating Temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature (package included) | -30 to 60°C (-22 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| Maritime | IEC 60945 |
| Safety | CE, IEC 62368-1, UL 60950-1 |
| Radio Frequency | FCC |
| EMC | EN 55032/24 |
| EMI | CISPR 22, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV |
| IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m | |
| IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV | |
| IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV | |
| IEC 61000-4-6 CS: 10 V | |
| IEC 61000-4-8 PFMF | |
| Green Product | RoHS, CRoHS, WEEE |
