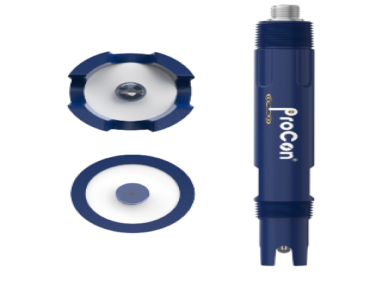

P14C Series pH Sensor Transmitter

  • NG # 003134-HW-IPC-034

ProCon® P14C Series pH Sensor Transmitter is engineered for harsh industrial applications, combining durability, high accuracy, and fast response times. Featuring a Nexus® solid KCl reference, 4-20mA output, IO-Link and RS-485 Modbus communication, and temperature compensation, it requires no preamplifier. Its rugged PP or PPS construction with ¾” NPT connection ensures reliable performance for process control, water treatment, and effluent monitoring.




Manufactured By :
Icon Process Controls
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The P14C Series pH Sensor Transmitter offers superior performance in demanding industrial environments. Designed for long-term reliability, it features a Nexus® solid KCl reference, high accuracy, and quick response times without needing a preamplifier. Supporting 4-20mA output, IO-Link, and RS-485 Modbus communication, its durable PP or PPS body with ¾” NPT connection withstands harsh conditions. Ideal for process control, water quality management, neutralization systems, cooling towers, pools, and effluent monitoring applications.

Specification

Type: pH sensor transmitter

Model: PROCON‑P14C

pH Range: 0–14 pH

Output: 4‑20 mA (2‑wire)

Optional Output: 4‑20 mA + RS‑485 (Modbus)

Temperature Compensation: Automatic built‑in

Accuracy: ±0.25 pH at pH 7.00 ±0.25

Operating Temp: 14–176 °F (–10 °C to 80 °C)

Max Pressure: Up to ~150 Psi @ 140 °F (60 °C)

Body Material: PP (standard) or Ryton® (PPS)

Reference System: Double junction with solid Nexus® KCl

Electrode Type: Blue glass (bulb or flat)

Connection: ¾″ NPT threaded

Electrode Resistance: < 500 MΩ

Impedance Range: 102–675 MΩ

Temperature Sensor: Pt‑1000 (standard)

No Preamp Required: Direct sensor output
