TFS Series – Level Switch

  • NG # 003130-HW-IPC-030

TFS Series Level Switch is a vibrating fork type sensor designed for liquid, slurry, solid, and powder level detection. Built for demanding industrial applications, it operates reliably in turbulence, foam, or air bubbles. Featuring a 316SS or PTFE probe, relay outputs, and compact design, it fits easily in small pipes or confined spaces.




Manufactured By :
Icon Process Controls
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The TFS Series vibrating level switch is engineered for reliable level detection in liquids, slurries, solids, and powders across industrial process applications. Its compact tuning fork with a 45 mm insertion length allows installation in small pipes and tight spaces. Constructed with 316SS or PTFE probes and an epoxy-coated junction box, it performs accurately even in turbulence, foam, or air bubbles, offering durable relay outputs for overflow protection, pump control, and process safety.

Specification

Specification

Type: Tuning Fork Vibration Level Switch

Power Supply: 24 VDC

Output: SPST relay (standard)

Relay Rating: 30 VDC / 3 A

Power Consumption: < 1 W

Response Time: ~1 second

Oscillation Start: ~3 mm

Working Pressure: < 2 MPa

Maximum Temperature: 464 °F (240 °C)

Medium Density: > 0.6 g/cm³

Process Connection: ½″ NPT

Electrical Connector: M12 quick connection

Fork Material: PTFE Teflon® coated 316 SS

Housing Protection: NEMA 4X / IP67

Operation Point: ~1″ (25 mm) vertical insertion

Probe Length: 1″–24″ options

Other Icon Process Controls Products

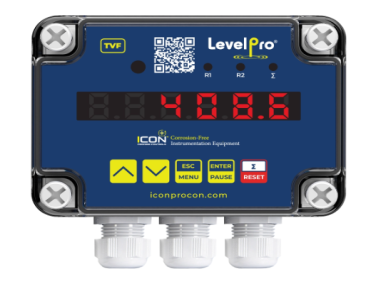

TVF-450 Industrial Flow Batching Controller
Icon Process Controls Industrial Tools & Accessories 003114-HW-IPC-014

P14H Series pH Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003135-HW-IPC-035

100 Series Submersible Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003115-HW-IPC-015

P14G Series pH Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003133-HW-IPC-033

MLR-70 Guided-Wave Radar Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003123-HW-IPC-023

TankPro® Continuous Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003118-HW-IPC-018

TIW Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003104-HW-IPC-004

PLA Liquid Level Float Switch with Alarm
Icon Process Controls Industrial Tools & Accessories 003128-HW-IPC-028

LP25 High Level Switch
Icon Process Controls Industrial Tools & Accessories 003131-HW-IPC-031

CFL Float Liquid Level Sensor
Icon Process Controls Industrial Tools & Accessories 003126-HW-IPC-026

TKM In-Line Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003110-HW-IPC-010

TIF Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003106-HW-IPC-006

200C Submersible Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003116-HW-IPC-016

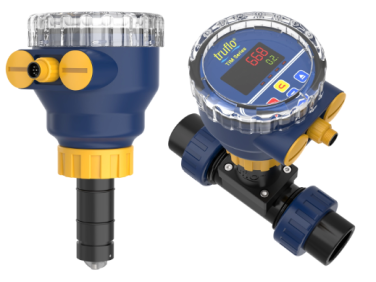

TIM Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003103-HW-IPC-003

300S Series Submersible Level Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003117-HW-IPC-017

TCB Series Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003112-HW-IPC-012

P14C Series pH Sensor Transmitter
Icon Process Controls Industrial Tools & Accessories 003134-HW-IPC-034

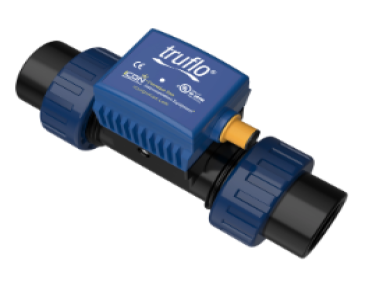

TKB In-Line Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003107-HW-IPC-007

TIP Insertion Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003102-HW-IPC-002

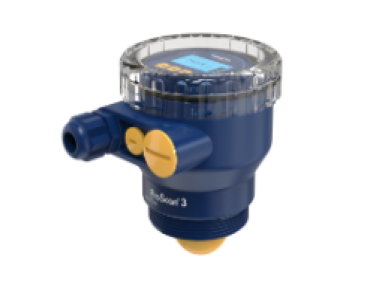

ViewSonic Ultrasonic Level Sensor Transmitter
