ProScan® 8002 Radar Liquid Level Sensor Transmitter

  • NG # 003121-HW-IPC-021

The ProScan® 8002 Radar Liquid Level Sensor Transmitter uses 80 GHz radar technology with a PTFE Teflon antenna for precise, reliable liquid level measurement in tanks or sumps. Resistant to foam and vapor, EX ATEX rated, with no moving parts. Offers simple programming, small 2″ dead band, and 4–20 mA loop-powered output.




Manufactured By :
Icon Process Controls
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

ProScan® 8002 is a high-precision 80 GHz radar liquid level sensor transmitter designed for both corrosive and non-corrosive liquids. Its PTFE Teflon antenna ensures accurate measurements by sending and receiving low-energy radar pulses, calculating level via pulse time-of-flight. With no moving parts and minimal 2″ dead band, it is reliable under foam or vapor conditions. Features include simple programming, EX ATEX rating, and 4–20 mA loop-powered output for robust industrial applications.

Specification

Specification

Minimum Range: 2 inches (≈ 50 mm)

Maximum Range: 34 ft (10 m)

Resolution: 0.04 in (1 mm)

Beam Angle: 8°

Response Rate: 1.1 seconds

Measurement Accuracy: > 0.1 % (0.16 in / 4 mm)

Repeatability: ± 0.11 in (± 3 mm)

Housing Materials: GFPP body + PTFE antenna; 316 SS + GFPP body + PTFE antenna; or Epoxy‑coated CI + 316 SS body + PTFE antenna

Dimensions: 93 × 190 mm, 93 × 207 mm, or 96.5 × 221 mm (depending on housing)

Installation / Process Connection: 2″ NPT or 150 lb ANSI flange

Operating Frequency Band: 80 GHz

Power Supply: 24 VDC, 2‑wire loop powered

Communication Interfaces: 4‑20 mA, RS485, HART

Enclosure Protection: NEMA 4X, IP66

Vacuum / Pressure: −14.5 Hg to −362 Psi

Operating Temperature Range: −40 °F to +250 °F (−40 °C to +121 °C)

Other Icon Process Controls Products

PLF Liquid Level Float Switch
Icon Process Controls Industrial Tools & Accessories 003127-HW-IPC-027

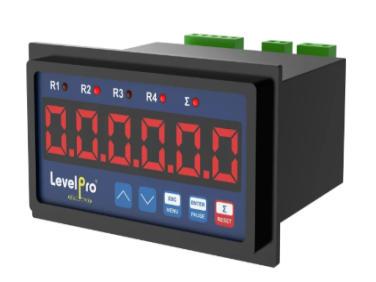

TVF Flow Display & Batcher
Icon Process Controls Industrial Tools & Accessories 003113-HW-IPC-013

TKB In-Line Paddle Wheel Flow Meter Sensor
Icon Process Controls Industrial Tools & Accessories 003107-HW-IPC-007

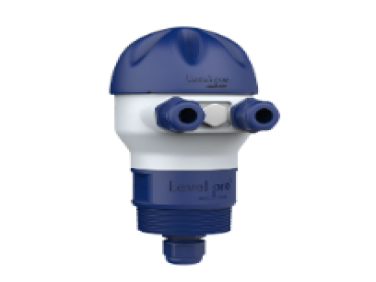

UltraPro® 2000 Ultrasonic Continuous Liquid Level Sensor Transmitter
