ST-4XX TEMPERATURE & HUMIDITY TRANSMITTER WITH DISPLAY

  • NG # 0532206-HW-EMS-206

ST-4XX is a temperature and humidity transmitter with an integrated display for precise environmental monitoring. It measures temperature and relative humidity and provides 0–10 V, 4–20 mA, or Modbus RTU outputs, featuring durable construction, easy assembly, and IP67 protection.





Manufactured By :
EMS Control
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The ST-4XX Temperature & Humidity Transmitter with Display provides accurate monitoring of environmental temperature and relative humidity for industrial applications. It supports temperature ranges from 0–50°C to -40–100°C and humidity measurement from 0–100% RH. With 12–24 V DC input, flexible analog or Modbus RTU outputs, a durable design, cleanable filter, and IP67 plastic case, it offers reliable and convenient installation.

Specification

Product Name: ST-4XX Temperature & Humidity Transmitter with Display
Input: 12–24 V DC
Output: 0–10 V / 2–10 V / 0–3 V / 4–20 mA / 0–20 mA / Modbus RTU
ST-401 Output: 0–10 V / 2–10 V / 0–3 V
ST-441 Output: 4–20 mA / 0–20 mA
ST-461 Output: Modbus RTU
Temperature Range: 0–50°C / 0–100°C / -20 to +80°C / -40 to +80°C / -40 to +100°C
Temperature Sensitivity: ±0.1°C
Temperature Accuracy: ±0.3°C
Humidity Range: 0–100% RH
Humidity Sensitivity: ±1% RH
Humidity Accuracy: ±3% RH
Probe Options: Probe Cable / Sintered Probe / Sintered Probe Cable / Metal Probe Duct Type / Metal Probe Screw Type / IP Socket
Dimensions: 172 × 65 × 40 mm
Protection Rating: IP67 plastic case (sensor excluded)

Other EMS Control Products

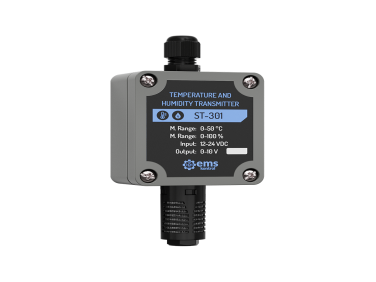

ST-3XX TEMPERATURE & HUMIDITY TRANSMITTER
EMS Control Industrial Tools & Accessories 0532201-HW-EMS-201

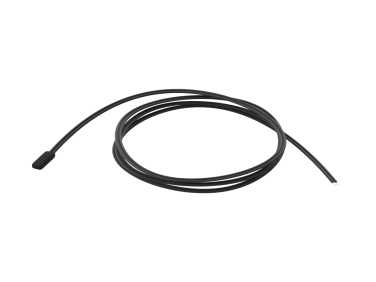

TS-1XX Temperature Sensor
EMS Control Industrial Tools & Accessories 0532202-HW-EMS-202

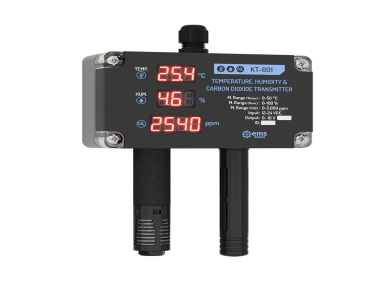

KT-6XX TEMPERATURE, HUMIDITY & CARBON DIOXIDE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532210-HW-EMS-210

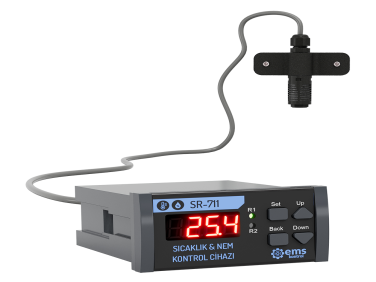

SR-711 Panel Type Temperature & Humidity Monitoring Unit
EMS Control Industrial Tools & Accessories 0532233-HW-EMS-233

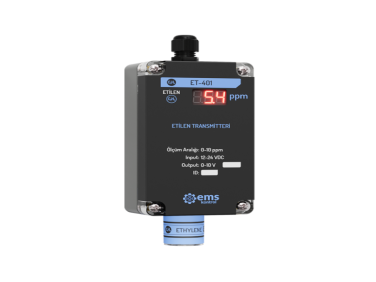

ET-4XX INDICATOR ETHYLENE (C₂H₄) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532227-HW-EMS-227

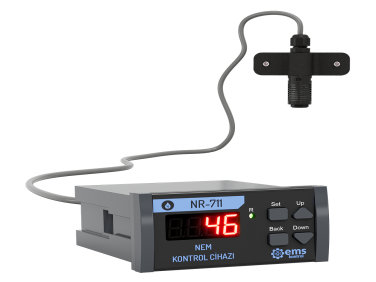

NR-711 Panel Type Humidity Monitor
EMS Control Industrial Tools & Accessories 0532232-HW-EMS-232

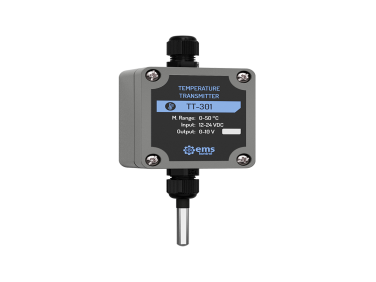

TT-3XX Temperature Transmitter
EMS Control Industrial Tools & Accessories 0532203-HW-EMS-203

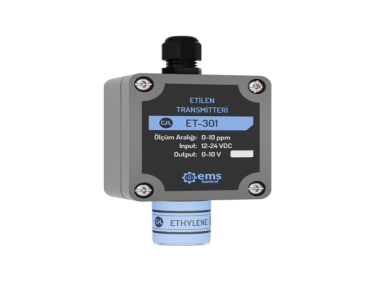

ET-3XX ETHYLENE (CH₂H₄) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532222-HW-EMS-222

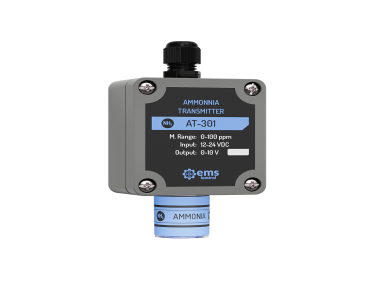

AT-3XX AMMONIA (NH₃) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532221-HW-EMS-221

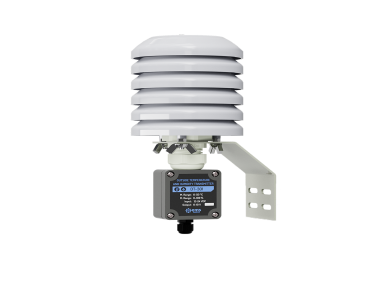

DT-3XX OUTDOOR TEMPERATURE & HUMIDITY TRANSMITTER
EMS Control Industrial Tools & Accessories 0532208-HW-EMS-208

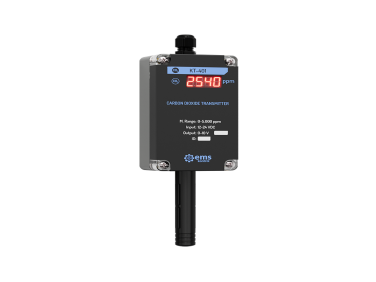

KT-4X1 CARBON DIOXIDE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532214-HW-EMS-214

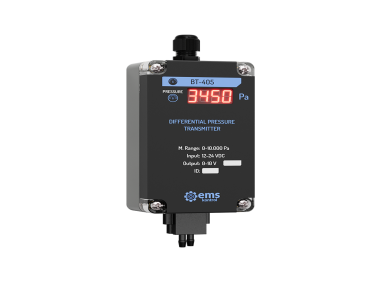

BT-4X4 / 4X5 DIFFERENTIAL PRESSURE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532220-HW-EMS-220

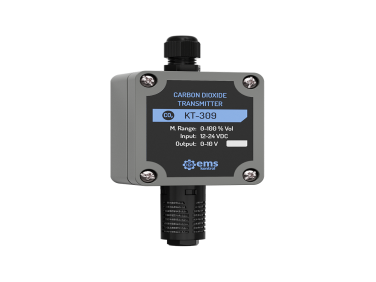

KT-3X9 CARBON DIOXIDE TRANSMITTER
EMS Control Industrial Tools & Accessories 0532213-HW-EMS-213

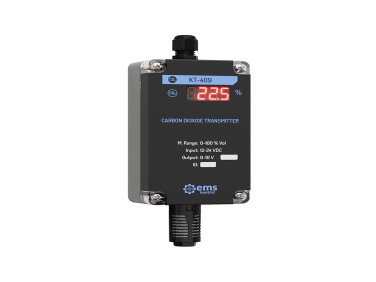

KT-4X9 CARBON DIOXIDE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532215-HW-EMS-215

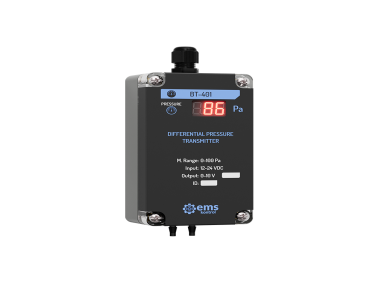

BT-4X1 / 4X2 DIFFERENTIAL PRESSURE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532219-HW-EMS-219

UT-3XX Sulfur Dioxide (SO₂) Transmitter
EMS Control Industrial Tools & Accessories 0532223-HW-EMS-223

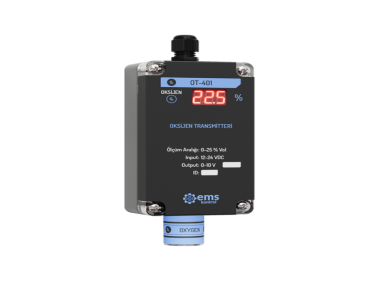

OT-4XX INDICATOR OXYGEN (O₂) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532230-HW-EMS-230

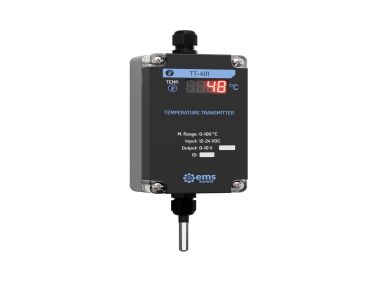

TT-4XX TEMPERATURE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532205-HW-EMS-205

OT-3XX OXYGEN (O₂) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532225-HW-EMS-225

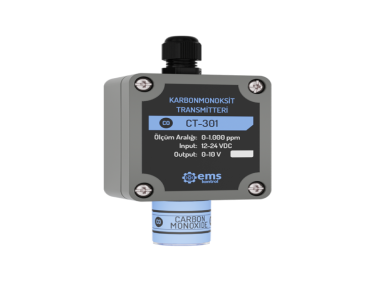

CT-3XX CARBON MONOXIDE (CO) TRANSMITTER
