TT-4XX TEMPERATURE TRANSMITTER WITH DISPLAY

  • NG # 0532205-HW-EMS-205

TT-4XX is a temperature transmitter with display designed for precise environmental temperature measurement. It converts readings into standard 0–10 V, 4–20 mA, or Modbus RTU signals, offering accurate measurement, easy assembly, long operating life, and an IP67-rated plastic case.





Manufactured By :
EMS Control
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The TT-4XX Temperature Transmitter with Display provides reliable temperature monitoring for industrial and environmental applications. It supports NTC 10K and PT-1000 sensors, with measuring ranges from 0–50°C to -40–150°C depending on the model. The transmitter operates on 12–24 V DC and offers analog or Modbus RTU outputs. Adjustable cable lengths up to 10 m and 50 mm or 100 mm metal probes provide flexible installation options.

Specification

Product Name: TT-4XX Temperature Transmitter With Display
Input: 12–24 V DC
Output Signals: 0–10 V / 2–10 V / 0–3 V / 4–20 mA / 0–20 mA / Modbus RTU
Sensor Type: NTC 10K / PT-1000
TT-4X1 Range: 0–50°C / 0–100°C / -20 to +80°C / -40 to +100°C
TT-4X5 Range: 0–50°C / 0–100°C / -20 to +80°C / -40 to +150°C
Sensitivity: ±0.1°C
TT-4X1 Accuracy: ±0.5°C
TT-4X5 Accuracy: ±0.1°C
Analog Voltage Models: TT-40X
Analog Current Models: TT-44X
Communication Model: TT-46X — Modbus RTU
Sensor Cable Length: 0–10 m, customizable
Metal Probe Length: 50 mm / 100 mm
Protection: IP67 plastic case
Dimensions: 187 × 65 × 40 mm

Other EMS Control Products

KT-3X9 CARBON DIOXIDE TRANSMITTER
EMS Control Industrial Tools & Accessories 0532213-HW-EMS-213

ET-4XX INDICATOR ETHYLENE (C₂H₄) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532227-HW-EMS-227

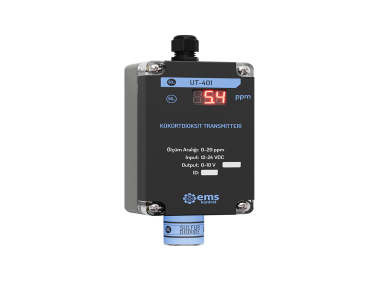

UT-4XX INDICATOR SULFUR DIOXIDE (SO₂) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532228-HW-EMS-228

UT-3XX Sulfur Dioxide (SO₂) Transmitter
EMS Control Industrial Tools & Accessories 0532223-HW-EMS-223

OT-3XX OXYGEN (O₂) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532225-HW-EMS-225

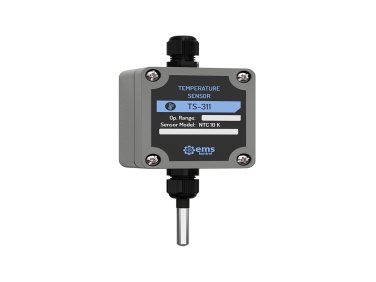

TS-3XX Temperature Sensor
EMS Control Industrial Tools & Accessories 0532204-HW-EMS-204

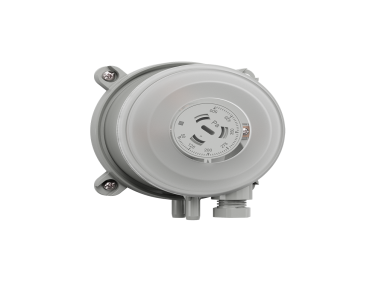

BD-355 DIFFERENTIAL PRESSURE SWITCH
EMS Control Industrial Tools & Accessories 0532216-HW-EMS-216

TS-1XX Temperature Sensor
EMS Control Industrial Tools & Accessories 0532202-HW-EMS-202

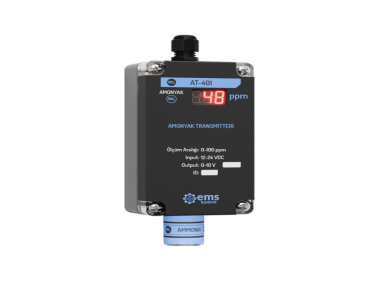

AT-4XX INDICATOR AMMONIA (NH₃) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532226-HW-EMS-226

KT-6XX TEMPERATURE, HUMIDITY & CARBON DIOXIDE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532210-HW-EMS-210

BT-4X1 / 4X2 DIFFERENTIAL PRESSURE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532219-HW-EMS-219

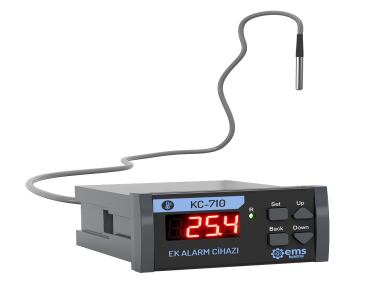

KC-710 ADDITIONAL ALARM DEVICE
EMS Control Industrial Tools & Accessories 0532231-HW-EMS-231

OT-4XX INDICATOR OXYGEN (O₂) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532230-HW-EMS-230

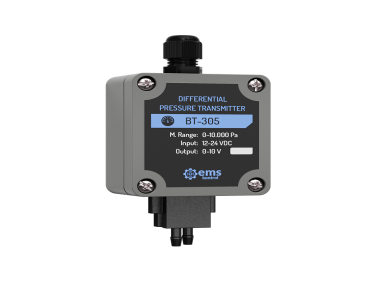

BT-3X4 / 3X5 DIFFERENTIAL PRESSURE TRANSMITTER
EMS Control Industrial Tools & Accessories 0532218-HW-EMS-218

AT-3XX AMMONIA (NH₃) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532221-HW-EMS-221

BT-4X4 / 4X5 DIFFERENTIAL PRESSURE TRANSMITTER WITH DISPLAY
EMS Control Industrial Tools & Accessories 0532220-HW-EMS-220

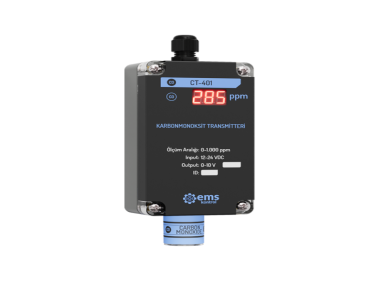

CT-4XX INDICATOR CARBON MONOXIDE (CO) TRANSMITTER
EMS Control Industrial Tools & Accessories 0532229-HW-EMS-229

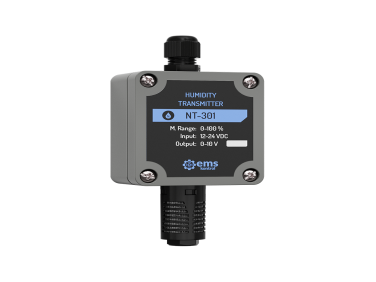

NT-3XX Humidity Transmitter
EMS Control Industrial Tools & Accessories 0532211-HW-EMS-211

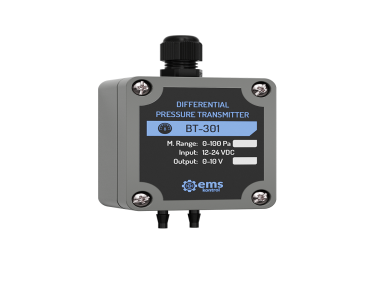

BT-3X1 / 3X2 DIFFERENTIAL PRESSURE TRANSMITTER
