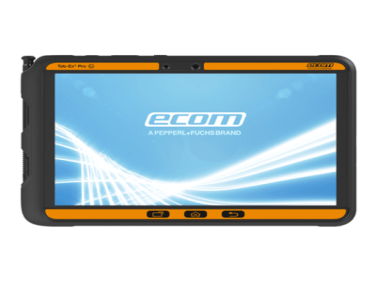

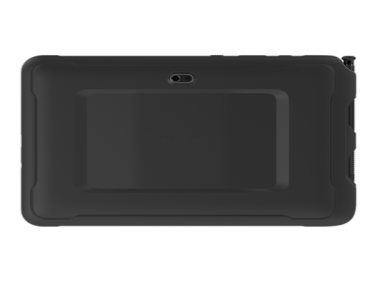

Tab-Ex® Pro DZ2 – 10.1" (25,6 cm) Android Tablet for Zone 2/22 & DIV 2

  • NG # 00400-HW-ECOM-046

  • MF # 00400-HW-ECOM-046

  • SKU # 00400-HW-ECOM-046

The Tab-Ex® Pro from the Pepperl+Fuchs brand ecom expands the Tab-Ex series as the world's first 10-inch Android tablet for hazardous areas.

Manufactured By :
ecom

List Price

$ US

Stock

Custom Pricing

Get A Quote

Overview

The Tab-Ex® Pro’s large display is ideal for demanding applications and for accessing web-based content. In addition, it allows employees to easily transition from working in the field to working at the office. Supported by Samsung DeX, the tablet allows a full desktop experience.

Specification

Specification

OPERATING SYSTEM
Android™
APPLICATIONS
Google ARCore, Samsung Knox
PROCESSOR
Qualcomm SDM670 Octa-Core 64 bit 2.0 GHz, 1.7 GHz
MEMORY
RAM: 4 GB, Internal data memory: 64 GB
MICRO-SD
optional MicroSD 512 GB (up to 1 TB possible)
DISPLAY
1920 x 1200 pixels, 8" WUXGA, TFT, 480 Nits Brightness, Operation also possible with gloves / in wet conditions
SENSORS
Accelerometer, Barometer, Fingerprint Sensor (only D2 device), Gyro Sensor, Geomagnetic Sensor, Hall Sensor, RGB Light Sensor, Proximity Sensor
DIMENSIONS AND WEIGHT
126.8 x 213.8 x 9.9 mm (W x H x D); ca. 610 g
ENVIRONMENT TEMPERATURE
-20 °C to +55 °C
PROTECTION
IP64 according to EN/IEC 60079-0 (ATEX/ IECEx), MIL-STD-810H, IP64 according to EN/IEC 60079-0 (ATEX/IECEx)
CONNECTIVITY
Wi-Fi 802.11 a/b/g/n/ac/ax (2.4GHz + 5GHz), 2x2 MIMO,Bluetooth® v5.0, Wi-Fi Direct,  GPS, GLONASS, Beidou, Galileo, Headphone Out: 3.5 mm,
SIM
1 x Nano SIM
CAMERA
Rear: 13 MP AF with LED Flash; Front: 5 MP / optional: non-camera
BATTERY CAPACITY
Li-Ion Battery 3.8 V / 7400 mAh / 28.12 WH / Runtime of up to 15 hours + Battery is replaceable
