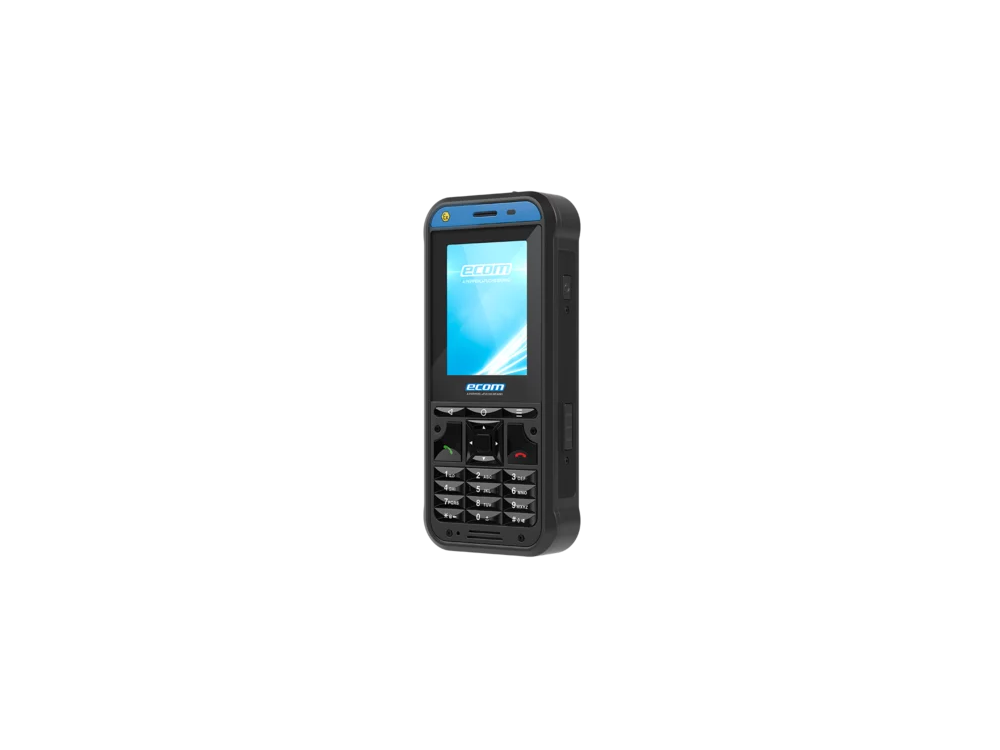

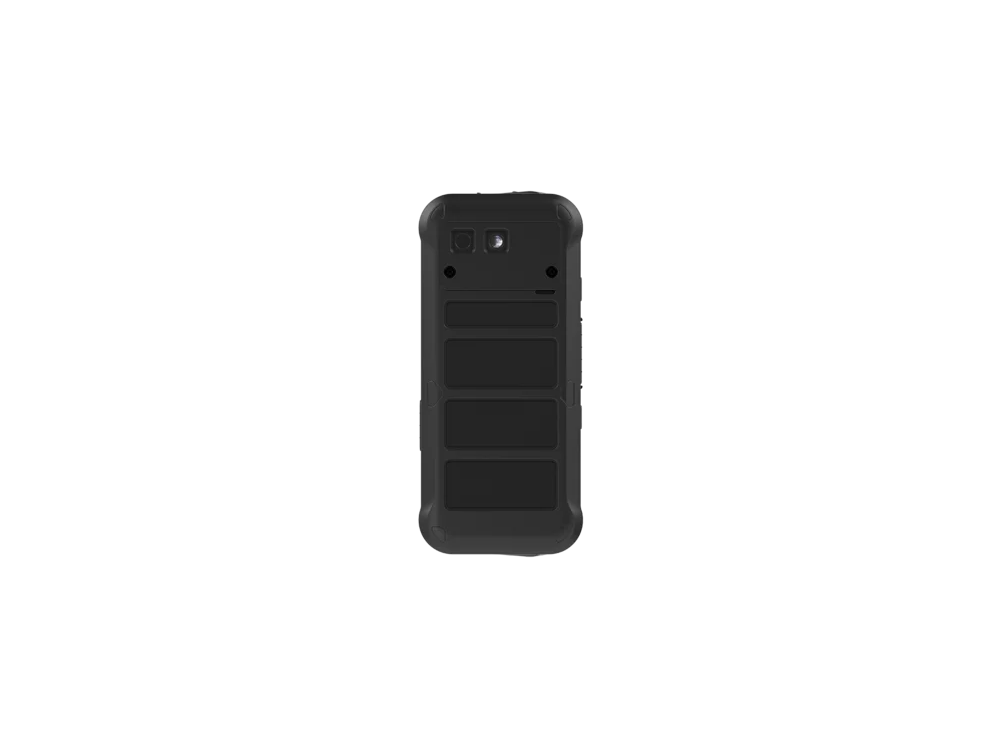

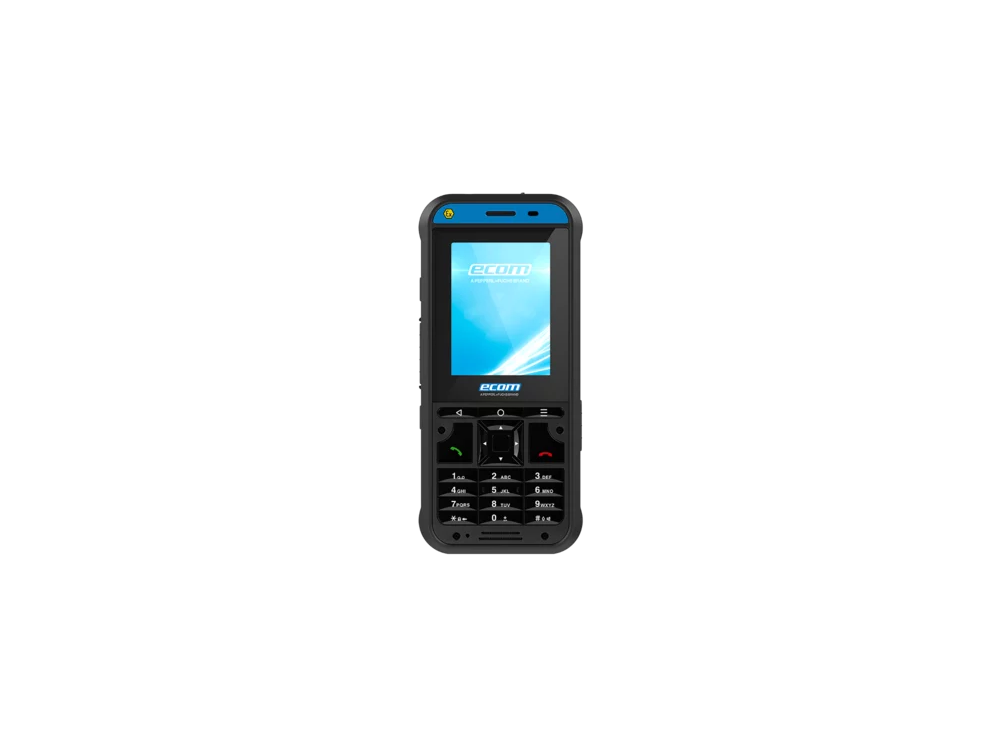

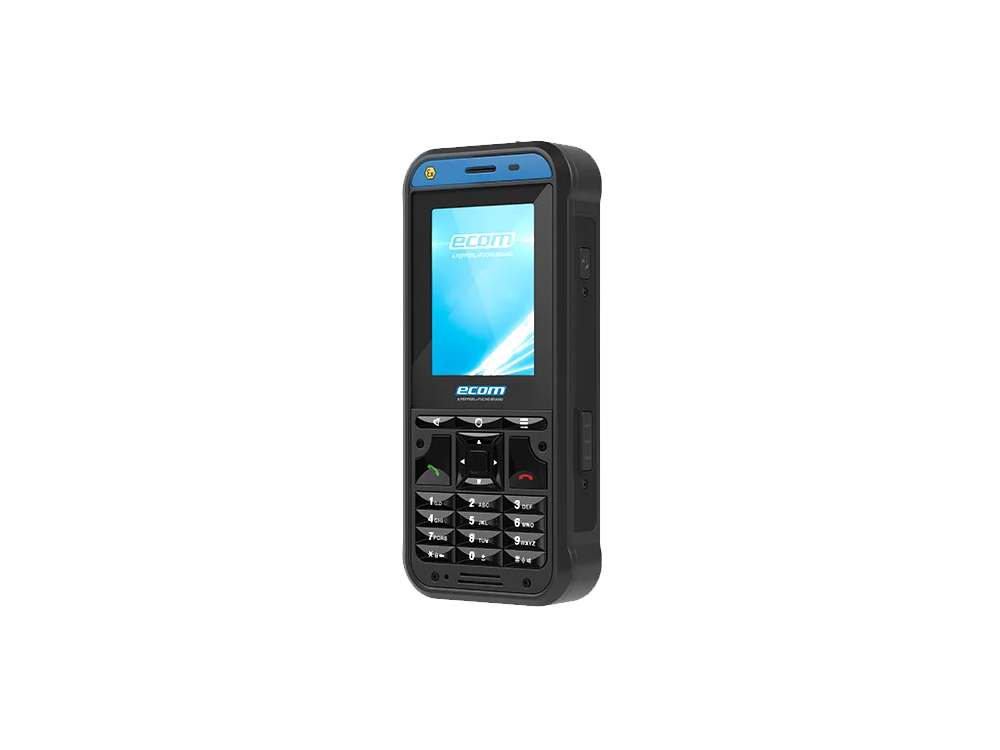

Ecom New Intrinsically Safe 4G/LTE Ex-Handy 10 DZ1 for Zone 1/21 & DIV 1

  • NG # 00411-HW-ECOM-012

Introducing the Ex-Handy 10 by Ecom, a brand affiliated with Pepperl+Fuchs. This cutting-edge intrinsically safe 4G/LTE feature phone is versatile, catering to a spectrum of applications such as communication, Push-to-Talk, and lone worker protection.

Manufactured By :
ecom
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Pepperl+Fuchs brand ecom introduces Ex-Handy 10 - the new generation of intrinsically safe 4G/LTE feature phones for a broad variety of applications - from pure communication to Push-to-Talk or lone worker protection.

The Ex-Handy 10 with Android operating system, is the ideal companion for innovative Industry 4.0 applications in hazardous areas. With IP68 and Gorilla® Glass you can operate the Ex-Handy 10 in the roughest of environments. With a 5-year product lifecycle and global Ex-certifications to meet all requirements, it provides a low risk investment to the user.

With customer-specific configurations and customizations, it also handles the most demanding of situations.

Specification



Operating System Android™ | Android Zero-Touch | Google Play
Processor Qualcomm Snapdragon MSM8909 platform
Band Cellular frequency bands:
  • 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71
  • 4G LTE TDD: B38, B39, B40, B41
  • 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz
  • 2G GSM: 850 / 900 / 1800 / 1900 MHz
Memory
  • 2 GB RAM, 16 GB ROM
  • microSD card up to 128 GB
Display
  • 6,6 cm (2,6") capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla® glass
  • Support of glove and wet mode
  • High Visibility in direct sunlight
Ports
  • Water-proof magnetic USB 2.0 connector
  • 3.5 mm jack connection with special ecom mounting solution
Dimensions 148 x 67 x 24 mm
Weight approx. 330 g
Dedicated keys PTT / Alarm / Power / Multifunction / Volume / Hardware buttons for Android features
Operating temperature -20 ... +60 °C
Connectivity
  • 4G / LTE -standard (SIM unlocked and free); Nano SIM
  • WiFi 802.11 a/b/g/n/e/k/r/h; 2.4 Ghz and 5 Ghz support
  • Bluetooth® 4.2 incl. BLE (Bluetooth Low Energy)
  • GPS / A-GPS / Glonass / Beidou
  • NFC

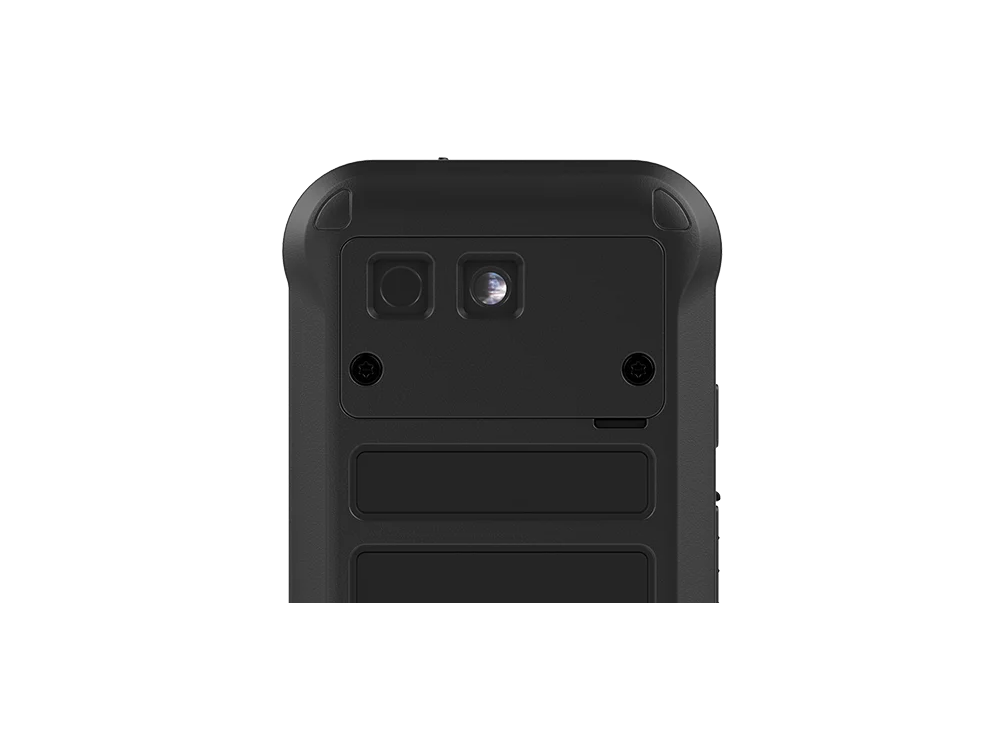

Camera 8 MP rear camera with auto focus (optional) and LED flash with torchlight function
Battery 4400 mAh
Protection IP68, MIL-STD-810G
