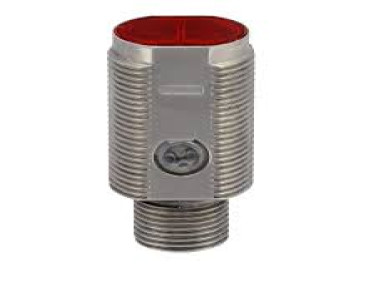

Weld-Immune Inductive Sensor

  • NG # 0522006-HW-CTRX-006

DW-AS-703-M12-693 is a weld-immune inductive proximity sensor designed for reliable, non-contact detection of metallic objects in demanding industrial environments. Featuring a 6 mm operating range, PNP output, and IO-Link communication, it supports precise detection and smart sensor integration. Its ActivStone-coated V2A stainless-steel housing provides excellent resistance to welding environments, while IP68/IP69K protection makes it suitable for automotive manufacturing, robotic welding, and heavy-duty automation.

Manufactured By :
Contrinex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DW-AS-703-M12-693 operates on a 10–30 V DC supply and supports a maximum switching frequency of 15 Hz. It features an M12 four-pin connection, flush-mountable construction, and an operating temperature range of −25°C to +85°C. Designed to withstand operating pressures up to 80 bar, it delivers dependable performance in harsh industrial conditions. Its IO-Link interface enables sensor parameterization and diagnostic data access for efficient monitoring and automated process control.

Specification

Type: Inductive Proximity Sensor

Model: DW-AS-703-M12-693

Series: Weld-Immune Full Inox Series 700

Operating Range: 6 mm

Switching Frequency: Max. 15 Hz

Supply Voltage: 10–30 VDC

Operating Pressure: ≤80 bar

Polarity: PNP

Output: Normally Open (NO) / IO-Link

Connection: M12, 4-Pin

Housing Size: M12

Housing Material: ActivStone-Coated Stainless Steel V2A

Protection Rating: IP68 / IP69K

Operating Temperature: -25 to +85°C

Sensor Height: 60 mm

Mounting: Embeddable

Interface: IO-Link
