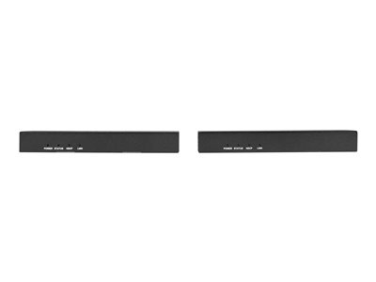

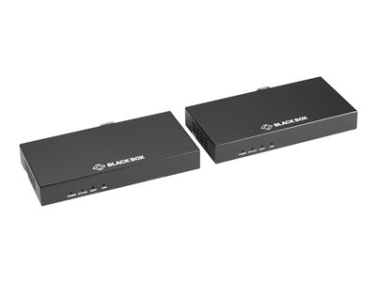

Black Box HDMI 2.0 Extender over Fiber - transmitter and receiver - video/audio/infrared/serial extender - RS-232, HDMI, infrared, CATx

  • NG # 03506-HW-BLACK-039

  • MF # AVX-HDMI2-FO-HDB

Manufactured By :
Black Box

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Distribute UHD video, audio, RS232 or IR together up to 1000-ft (300-m) over fiber optic cable. Send higher-quality video and audio signals further with this HDMI 2.0 Extender. This extender kit distributes UHD video audio RS232 or IR up to 1000 feet (300 meters) over fiber optic cable. The bi-directional RS-232 or IR ports to control AV devices are easy to choose by the slide switch on the rear panels. Control sources and displays from either the transmitter or receiver end using either RS232 or IR signals. The extender supports duplex fiber up to 1000 feet (300 meters). Extend signals over duplex fiber up to 1000 feet (300 meters) while maintaining Higher resolutions Higher frame rates Multiple full HD streams in the same pipe 219 aspect ratio.

Specification

General
Device Type
Video/audio/infrared/serial extender
Form Factor
External
Networking
Connectivity Technology
Wired
Data Link Protocol
RS-232, HDMI, infrared, CATx
Max Resolution
4096 x 2160
Max Video Bandwidth
594 MHz
Max Transfer Distance
984 ft
Status Indicators
Power, status, link/activity, HDCP
Features
4K resolution support, LPCM 7.1 support, Dolby TrueHD support, DTS-HD Master Audio support, HDR support
Compliant Standards
HDCP 2.2
Expansion / Connectivity
Interfaces

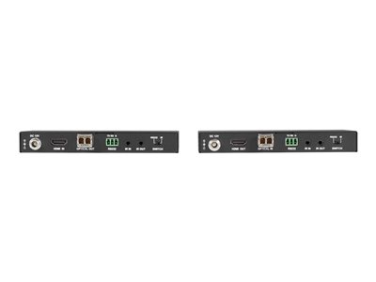

1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x CATx - SFP+ ¦ 2 x RS-232 (bi-directional) - terminal block female ¦ 2 x IR (input) - mini jack female ¦ 2 x IR (output) - mini jack female
Miscellaneous

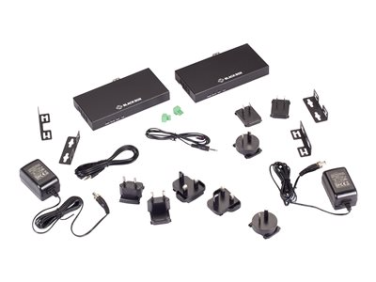

Included Accessories
4 mounting brackets
Cables Included
1 x IR receiver cable ¦ 1 x IR transmitter cable
Mounting Kit
Included
Compliant Standards
VCCI, IC, FCC, RCM
Power
Power Device
External power adapter
Installed Qty
2
Dimensions & Weight
Width
5.9 in
Depth
2.9 in
Height
0.8 in
Weight
10.58 oz
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
