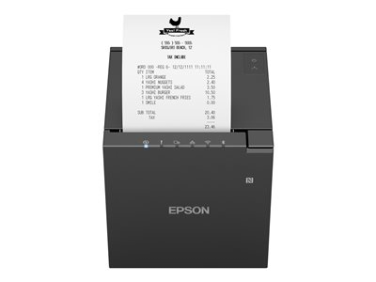

Epson OmniLink TM-m30III - receipt printer - B/W - thermal line

  • NG # 03420-HW-Epson-014

  • MF # C31CK50012

Manufactured By :
Epson
Ask For Price

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Sleek and compact, it is ideal for mPOS receipt printing.

Specification

General
Printer Type
Receipt printer - thermal line - monochrome
Enclosure Color
Epson black
Printer
Print Speed
Up to 300 ppm - max speed
Connectivity Technology
Wireless
Interface
USB, Gigabit LAN, USB host, USB-C
Max Resolution (B&W)
203 x 203 dpi
Max Resolution Class (B&W)
203 x 203 dpi
Fonts
Font A (12x24), Font C (9x17), Kanji Font A: 24 x 24, Kanji Font B: 20 x 24, Font B (10x24)
Character Sizes (mm)
0.0346 in x 0.0838 in, 0.049 in x 0.118 in, 0.044 in x 0.118 in, 0.098 in x 0.118 in, 2.26 x 3 mm
Columns
36, 48, 64, 24, 28, 57
Features
Open cover sensor, full / partial cutter
Auto Cutter
Yes
Barcodes
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, Codabar, Code 128, PDF417, Data Matrix, ITF, GS1-128, Composite
Printer Features
Paper end sensor, paper near end sensor
RAM
RAM Installed (Max)
4 KB
Media Handling
Media Type
Thermal paper
Max Media Size
Roll (3.13 in)
Min Media Size (Custom)
2.25 in
Max Media Size (Custom)
3.15 in
Media Sizes
Roll (3.13 in), Roll (2.3 in)
Media Thickness Range
0.0019 in - 0.003 in
Roll Maximum Outer Diameter
3.3 in
Roll Core Diameter
0.71 in
Media Feeders
1 x manual - 1 roll - Roll (3.13 in)
Networking
Networking
Print server
Expansion / Connectivity
Connections
1 x USB 2.0 - 4 pin USB Type B ¦ 1 x USB 2.0 - 24 pin USB-C/power DC jack ¦ 1 x LAN - RJ-45 ¦ 1 x USB host - 4 pin USB Type A
Miscellaneous
Media Included
1 thermal roll paper
MTBF
360,000 hours
Features
LED indicator, spill-resistant
Compliant Standards
ICES-003 Class A, RoHS, UL62368-1/CAN/CSA C22.2 No.62368-1, EMI FCC Class A
Power
Power Device
Power adapter - external
Power Consumption Operational
30.6 Watt
Power Consumption Stand by
1.4 Watt
Software / System Requirements
Software Included
EpsonNet Config, TM Utility
OS Required
Apple MacOS X, Microsoft Windows, Debian GNU/Linux, Android, Apple iOS
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90%
Sound Emission (Operating)
53 dBA
Dimensions & Weight
Width
5 in
Depth
5 in
Height
5.1 in
Weight
2.87 lbs
