NG # 03590-HW-FUJI-007
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing

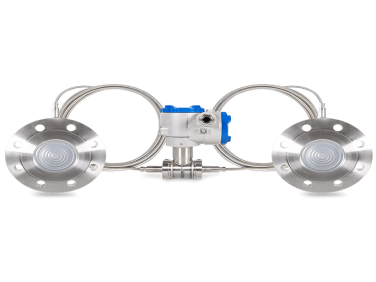

Get A QuoteThe FKB, FKD and FKM pressure transmitters in the FCX-AIV family accurately measure gauge pressure, differential and absolute pressure respectively, and convert it into a directly proportional 4-20 mA output signal. At the heart of the measuring element is a micro-capacitive silicon transducer highly proven in the process industry. The digital signal processing carried out by the electronics unit ensures outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with standards IEC 61508 and IEC 61511.
Housing | L- or T-shaped housing |
Measuring ranges (kPa) [e.max.] | 32 130 500 3000 20000 |
Weight per kg (without indicator) | 9-19 |
Accuracy | ± 0,065 % |
Materials in contact with the process | Stainless steel 316L, Hastelloy-C, Monel, Tantalum, Titanium, Zirconium |
Case materials | Low-copper aluminum alloy with polyester coating or 316L stainless steel |
Membrane materials | Stainless steel 316L Hastelloy-C Monel Titanium Zirconium Stainless steel 316L and Gilding |
Stability | ±0.2% of full scale for 10 years |
Elevation / Deletion | From -100 to +100% of maximum scale |
Scale setting range | 1 to 1/100 of maximum scale |
Measurement cycle | 40 ms |
Communication protocol | HART™ 7 communication protocol |
Process temperature | From +40° to +120°C (versions for higher temperatures are available) |
Ambient temperature | From -40° to +85°C |
Power supply | 10.5 to 45V DC |
Output signal / Load resistance | 4-20 mA / 250 Ω typical |
Damping | Configurable between 0.04 and 32 secs |
Zero and span adjustment | Via external sensor screw, local three-button indicator or HART™ protocol |
Electrical connections | M20x1.5" / 1/2 - 14 NPT / Pg13.5 |
Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
