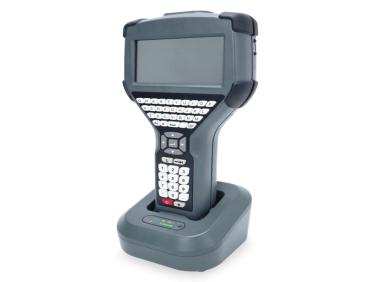

Get A QuoteThe MFC5150 HART® handheld configurator reads device information directly, without translation or subscription, enabling communication with any registered or unregistered HART® device. This guarantees that your HART® sensor will connect, whatever the make or model.
The MFC5150 is built on the SDC-625 infrastructure and runs Windows CE. With a 1 GHz processor and a 4 GB Micro SD card, this HART® communicator is ideal for all your data storage needs.
The 4.3" touchscreen offers excellent anti-glare vision, enabling comfortable mobile use in the dark or in direct sunlight.
All functions are easily accessible via the QWERTY keyboard and intuitive smartphone-like icons.
The unit also features hyperlink menu access, device-specific learning shortcuts, instant start-up, multiple languages, help context, video and TAB access, just like on a computer. Each unit includes: docking station with universal power adapters, HART® cable kit, rechargeable battery, USB cable and SD card, soft carrying case, wrist strap, quick start guide.
| Display | Type: Transmissive screen with anti-reflective coating Color: 24-bit TFT Resolution: 480 × 272 pixels Backlighting: white LED |
| Size | 11.9x5.6x1.9 inches [303x142x48 mm] |
| Weight | Approx. 2.1 lb [0.95 kg] with battery |
| Keyboard | Keyboard with tactile feedback |
| Keys | 52 keys, including QWERTY keys |
| Power supply | Rechargeable battery: lithium-ion |
| Battery life at 100% charge | On at 100% backlighting: 10 hours min. Off: 30 days min. Storage, battery removed: 1 year min. |
| Battery charger | AC adapter: wall-mounted Inserts: four international inserts (US-U,UK-B,EU-E,AU-A) Input voltage : 100 - 240 VAC 50/60 Hz Output voltage: 15 VDC Output current: 1600 mA Overload protection: Yes |
| Battery charge indicator | Tricolour LED indications |
| Water resistance Case | IP51 |
| Communication connections | Two banana plugs spaced 3⁄4 inches apart |
| Storage | Media type: microSD card Capacity: 4GB min |
| USB | Supports up to 921.6 kbps USB B-type connector |
| Electrical equipment safety | UL (US): UL61010-1 Ed3 ANSI (US): UL60950-1, AC adapter CSA (Canada): CSA-C22.2, NO. 61010-1-12 CE (Europe): EN60950-1, mains adapter |
| Environmental protection | RoHS: Directive 2011/65/EU WEEE: Directive 2012/19/EU REACH: Regulation (CE) NO 1907/2006 |
| Transport | IATA: UN/DOT 38.3, Li-ion battery |
| Communication in the field | HART® Communication |
| Operating system | Microsoft Windows™ CE |
| Internal memory | ROM: 512 MB RAM: 256 MB |
| Support versions HART® communication | HART® 5, 6, 7 |
| Languages | Chinese English French German Italian Japanese Korean Polish Portuguese Romanian Russian Spanish |
| Current equipment | All sensors supporting the HART® communication protocol |
| Shock resistance | Tested to withstand a one-metre drop onto concrete |
| Accessories Included | Carrying case : - Exterior: ballistic nylon - Interior: Black 420 nylon Communication guide : - Moulded banana plug test leads test leads, 1 m long Wrist strap: wrist strap USB cable : - 2-meter type A to USB type B CD ROM : - Documentation - Drivers - PC utility |
