NG # 03587-HW-FUJI-004
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing
Get A QuoteGAUGE PRESSURE TRANSMITTER - FKG : A ROBUST AND PRECISE SOLUTION FOR INDUSTRIAL PRESSURE MEASUREMENT The gauge pressure transmitter FKG from Fuji Electric is designed to provide reliable and precise pressure measurement in demanding industrial environments. With its robust construction and high accuracy, it ensures long-term stability even in extreme conditions. Its easy integration and broad compatibility make it an ideal choice for various industrial applications. FEATURES OF THE GAUGE PRESSURE SENSOR FKG - Measurement range: from -1 to 500 bar - High accuracy: stable and reliable measurements over time - Signal output: available in both analog and digital versions - Material: stainless steel construction for optimal durability - Protection rating SIL2/SIL3: designed for harsh environments APPLICATIONS The gauge pressure transmitter FKG is used in various industrial sectors requiring precise pressure control, including energy, petrochemicals, water and fluid treatment, and industrial process automation. BENEFITS Increased reliability and accuracy for optimal process control Adaptability to complex industrial environments Resistance to extreme conditions with robust construction Simplified integration with various control systems Reduced maintenance for optimized operating costs
| Type | Intelligent 4-20 mA Pressure transmitter with HARTTM 7 protocol |
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 70 000 150 000 |
| Weight per kg (without indicator) | 1.5 |
| Accuracy | ±0.065% |
| Materials in contact with the process | Inconel® 625 Stainless steel 318 LN Stainless steel 316L |
| Case materials | Low-copper die-cast aluminum alloy, coated with polyester (standard) or 316L stainless steel (optional). |
| Membrane materials | Inconel® 625 Inconel® 625 and Gold plating |
| Stability | ±0.1% of upper range limit for 5 years |
| Elevation / Deletion | -1 barg at 100% of full scale |
| Scale setting range | From 1 to 1/16 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From -40 to 100°C |
| Ambient temperature | From -40 to +85°C -20 to +80°C (with optional LCD unit) -40 to +60°C (with optional lightning arrester) |
| Power supply | 10.5 to 45 V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.04 to 32 seconds |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20×1.5" / 1/2 -14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |

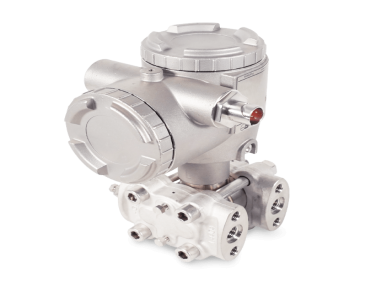

Differential pressure sensor FKC - FCX-AIV V6 Series
Fuji Electric 1-valve for absolute or gauge pressure transmitter

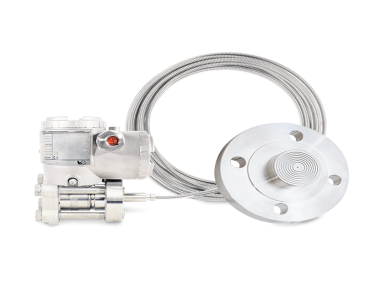

Fuji Electric Nuclear analog diaphragm seal gauge pressure transmitter - FYB - K3
