NG # 03604-HW-FUJI-021
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing

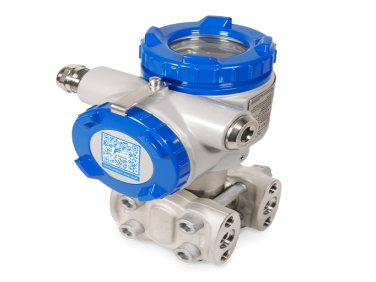

Get A QuoteFuji Electric's pressure transmitter differential FKC with hydroseal membrane, with its sensor technology for hydrogen, uses a double-coated gold and ceramic membrane to effectively block hydrogen permeation, guaranteeing increased accuracy and durability. Designed for pressures up to 42 MPa and temperatures between -40°C and +85°C, this system is ideal for critical applications such as fuel cells and gas monitoring in a variety of sectors, including the automotive and chemical industries. The transmitter's robust design ensures reliable performance even under high pressure, enhanced by features such as HART protocol for easy configuration.
Limping | L- or T-shaped housing |
Measuring ranges (kPa) [e.max.] | 32 130 |
Weight per kg (without indicator) | 3,6 |
Accuracy | ±0.15% |
Materials in contact with the process | Stainless steel 316, Stainless steel 316 L |
Case materials | Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers). Option: 316 stainless steel |
Membrane materials | Stainless steel 316 |
Stability | ±0.15% of maximum scale for 10 years |
Elevation / Deletion | Equal to the upper limit of static pressure. |
Process temperature | -40 to +120 °C for silicone sensor filling -20 to +80 °C for fluorinated oil sensor filling |
Ambient temperature | from -40 to +85 °C -20 to +80 °C for LCD indicators - 40 to +60 °C for shutdown option -10 to +60 °C for fluorinated oil-filled sensors |
Power supply | 10.5 V to 45 V DC |
Output signal / Load resistance | 4 to 20 mA |
Damping | Configuration between 0.06 and 32 seconds |
Zero and span adjustment | Via external sensor screw, local three-button indicator or HART™ protocol |
Electrical connections | G1/2, 1/2-14 NPT, Pg13.5 or M20 × 1.5, depending on application datasheet |
Options | Indicator, local configurator with LCD display, integrated lightning arrester, oxygen service, chlorine service, degreasing, datasheet NACE, vacuum service, optional nameplate, cell lining |
