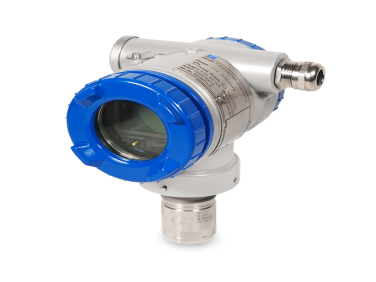

Get A QuoteThe gauge pressure transmitter FKR FCX-AIV series stands out for its ability to provide reliable, accurate measurements in the most demanding industrial environments.
Designed to meet the needs of high-pressure applications, the gauge pressure transmitter - high pressure - FKR is capable of withstanding high pressure ranges, up to 150 MPa, while offering enhanced resistance to harsh environmental conditions such as extreme temperatures and corrosive environments. Its material options enable optimum use in aggressive processes.
The high-pressure transmitter also features an optional configurable digital display, making measurements easy to read and enabling simple adjustments via magnetic buttons, without the need to open the housing. Compatible with HARTTM 7 protocol, it ensures seamless integration with modern control systems, enhancing its versatility. Its robust design and international certifications (ATEX, IECEx, cCSAus) make it the preferred choice for critical applications in classified hazardous areas.
| Type | Intelligent 4-20 mA Pressure transmitter with HARTTM 7 protocol |
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 70 000 150 000 |
| Weight per kg (without indicator) | 1.5 |
| Accuracy | ±0.065% |
| Materials in contact with the process | Inconel® 625 Stainless steel 318 LN Stainless steel 316L |
| Case materials | Low-copper die-cast aluminum alloy, coated with polyester (standard) or 316L stainless steel (optional). |
| Membrane materials | Inconel® 625 Inconel® 625 and Gold plating |
| Stability | ±0.1% of upper range limit for 5 years |
| Elevation / Deletion | -1 barg at 100% of full scale |
| Scale setting range | From 1 to 1/16 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From -40 to 100°C |
| Ambient temperature | From -40 to +85°C -20 to +80°C (with optional LCD unit) -40 to +60°C (with optional lightning arrester) |
| Power supply | 10.5 to 45 V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable from 0.04 to 32 seconds |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20×1.5" / 1/2 -14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
