Get A QuoteThe beacons can be mounted directly on a suitable surface or easily adapted on the optional available mounting plate (which facilitates the battery exchange of the beacons).

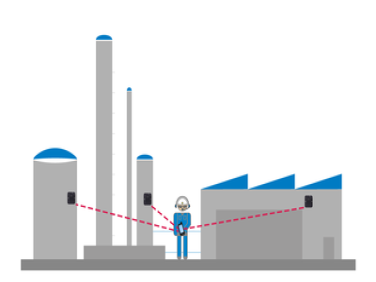

The Bluetooth 4.0 standard makes the beacons compatible with currently popular smartphones & tablets and they can be recognized by such devices over a distance of up to 200 m (Geolocation). The beacon signals can be evaluated by the mobile device via individual applications and, in this way, interact with the user or other programs.
Type: Intrinsically safe Bluetooth® Low Energy (BLE) Beacon
Use Case: Geolocation via BLE — compatible with smartphones and tablets
Installation: Can be mounted directly or with optional mounting plate
Environment: Suitable for both indoor and outdoor use (UV-resistant, IP64)
BLE Version Compatibility: From 4.0 onwards
Operating Range:
Up to 30 m indoors
Up to 200 m outdoors
Adjustability: Important operating parameters can be changed "over the air"
Firmware: Open for custom BLE profile development (TI CC2541 chip)
Battery Type: 2x Saft LS14500 (3.6 V, 2600 mAh, Li-SOCl2)
Form Factor: AA / Mignon / R6
Battery Life: Approx. 4 years with factory settings
Protocol: ECOM Standard (UUID, Major ID, Minor ID, RX Power)
Frequency: 1000 ms transmission interval
Power Output: Max. 8 dBm
Compatible Devices: Android™ smartphones
Ambient Temp: -20°C to +55°C (-4°F to +131°F)
Storage Temp: -30°C to +30°C (-22°F to +86°F)
Ingress Protection: IP64 (dust & splash resistant)
Weight: Approx. 180 g (including batteries)
Dimensions (W x H x D): 111 mm x 102 mm x 48 mm
ATEX:
EPS 16 ATEX 1 043 X
Marking: II 2G Ex ia IIC T4 Gb / II 2D Ex ia IIIC T125°C Db IP64
IECEx:
Certificate: IECEx EPS 16.0019X
Marking: Ex ia IIC T4 Gb / Ex ia IIIC T125°C Db IP64
NEC/CEC (North America):
Certificate: 70105641
Class I, II, III, Division 1, Groups A-G, T4
Class I, Zone 1, AEx ia IIC T4 Gb
Class II, Zone 21, AEx ia IIIC T125°C Db
