Ecom i.roc® Ci70 –Ex(DISCONTINUED)

  • NG # 00418-HW-ECOM-019

The i.roc® Ci70 -Ex introduces an inventive modular design, offering a range of configurations equipped with cutting-edge technology to suit virtually any application within hazardous environments.

Manufactured By :
ecom
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

The i.roc® Ci70 -Ex is the latest development in ecom‘s successful i.roc® product range and the first PDA to have been jointly developed in conjunction with Intermec. This makes it a great mobile computer – not least because of its many features that are unique to mobile computing in explosive environments.

It also comes with the highest number of global approvals for use in such areas – from ATEX through IECEx to NEC & Mining (MSHA) – and it is also entirely compatible with all applications developed for the Intermec 70 series, which means that it can be incorporated into existing systems.

Mobile computers for use in explosive environments often constitute a compromise due to the fact that they cannot employ the latest technologies. But ecom and Intermec have combined their development competence to create an intrinsically-safe handheld computer solution that delivers state-of-the-art for use in explosive environments.

Specification

Specification

PHYSICAL CHARACTERISTICS

incl. battery weight approx. 900 grams (2 pounds)
225 x 85 x 58 mm (8.8 x 3.3 x 2.3 inches) (standard configuration)
249 x 85 x 58 mm (9.8 x 3.3 x 2.3 inches) (with optional head modul)

ENVIRONMENTAL

Operating Temperature -20 °C … +50 °C (-4 °F … +120 °F)
Storage Temperature -20 °C … +60 °C (-4 °F … +140 °F)
Drop Specifications 1.20 m (4 feet) according to MIL-STD-810G at -20 °C and +50 °C (-4 °F and +120 °F)
Electrostatic Discharge +/- 8 KV contact discharge and +/- 15KV air discharge
Rain and Dust Resistance IP65

POWER

Battery 3.7 V, 4.000 mAh ∙ IEEE 1725 compliant ∙ Li-Ion ∙ swappable

OPERATING SYSTEM

Windows® Embedded Handheld 6.5.3

PROCESSOR

OMAP Multi Core Processor 1GHz

MEMORY AND STORAGE

512 MB RAM, 1 GB Flash Memory,
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

DISPLAY

3.5 inches, VGA (480 x 640 pixels), 65.536 colors, ambient light sensor, LED backlight, transmissive TFT-LCD touchscreen display, highly durable due to Gorilla® Glass

INTERFACES

USB - Full Speed 2.0 Client ∙ IrDA

WLAN

IEEE 802.11 a/b/g/n ∙ IEEE 502.11d ∙ Security: WPA2, WEP, TKIP, AES;
Authentication OPEN, SHARED-KEY, PEAP (MS-CHAP V2, Generic Token Card (GTC), MD5), TLS, TTLS (PAP, CHAP, MS-CHAP, MS-CHAP V2, PAP/Token Card, EAP with GTC), LEAP, FAST ∙ Cisco CCXv4 compliant

WIRELESS WAN

3G WWAN for data communications: UMTS/HSDPA/HSUPA (14.4 Mbps D/L, 5.76 Mbps U/L peak); Frequencies: 850, 900, 1800, 1900 MHz
CDMA/EV-DO Rev A (3.1 Mbps D/L, 1.8 Mbps U/L peak); Frequencies: 800, 850, 1900, 2100 MHz
GSM, GPRS, EDGE; Frequencies: 850, 900, 1800, 1900 MHz

BLUETOOTH®

Class II, Version 2.1 + EDR ∙ Operating Channels: 0 - 78 (2402 - 2480 MHz) ∙ Data Rates 1, 2, 3 Mbps

GPS

gpsOne

AUDIO

Loudspeaker ∙ wireless Bluetooth® headset support ∙ VOIP audio support via headset

SENSOR TECHNOLOGY

Accelerometer: Enables automatic or application-specific features

HEAD OPTIONS

2D imager, 1D laser scanner, HF RFID, LF RFID, UHF RFID

KEYBOARD

Backlit numeric or alpha numeric ∙ laser etched hard keycaps

REGULATORY APPROVALS AND CONFORMITY

Safety: 60950-1
EMC: FCC, CE
Laser: IEC/EN 60825-1 Class 2
Environmental: WEEE, RoHS
Radio: FCC, CE
Battery: UL 1642, IATA

ATEX

EX II G ia IIC T4 Gb IP64
EX II D ia IIIC T135°C Db IP6X

IECEX

EX II G ia IIC T4 Gb IP64
EX II D ia IIIC T135°C Db IP6X

NEC
NORTH AMERICA (USA / CANADA)

Class I Division 1, Groups A, B, C, D T4
Class II Division 1, Groups E, F, G T4
Class III

CLASS I ZONE 1 IIC T4 - PROTECTION METHOD:

North America (USA): AEX ia IIC T4 Gb
North America (Canada): Ex ia IIC T4 Gb

CLASS II ZONE 21 IIIC T135°C - PROTECTION METHOD (USA):

AEx ia IIIC T135°C Db



CATALOGS

manual

Other ecom Products

Ecom Pad-Ex® 01 - ATEX Mobile Tablet (Zone 2)(Discontinued)

ecom Computer & Electronics 00424-HW-ECOM-025

Ecom Intrinsically Safe Two-Way Radio - Ex-PMR 2000(Discontinued)

ecom Computer & Electronics 0435-HW-ECOM-036

ECOM Smart-Ex® 02M: Intrinsically safe smartphone certified for Mining(Discontinue)

ecom Computer & Electronics 00404-HW-ECOM-005

Ecom Ex-Cover Pro D2

ecom Computer & Electronics 00407-HW-ECOM-008

Ecom Pad-Ex® 01 P8 D2: Windows field mobile tablet & desktop PC

ecom Computer & Electronics 00409-HW-ECOM-010

Ecom Ex-Handy 08 LWP - Intrinsically safe cell phone with lone worker protection

ecom Computer & Electronics 00400-HW-ECOM-0125 00400-HW-ECOM-0125

Ecom Ex-Handy 10 CLASSIC MODE

ecom Computer & Electronics 00410-HW-ECOM-011

Ecom Intrinsically Safe Temperature Meter for Zone 1 (ATEX) - Ex-MX2(Discontinued)

ecom Computer & Electronics 00437-HW-ECOM-038

Ecom Intrinsically Safe Measuring Tool - A2109/LSR (Discontinued)

ecom Computer & Electronics 00436-HW-ECOM-037

ECOM Smart-Ex® 03 DZ1: Intrinsically safe 5G smartphone for Zone 1/21 & DIV 1

ecom Computer & Electronics 00403-HW-ECOM-004

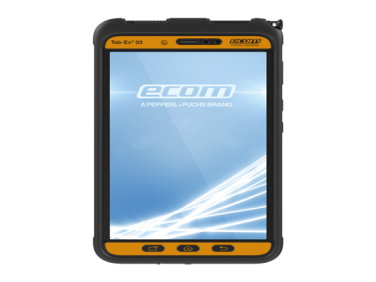

ECOM Tab-Ex® Series | Zone 1/21 and Division 1
