NG # 03322-HW-MAXO-031

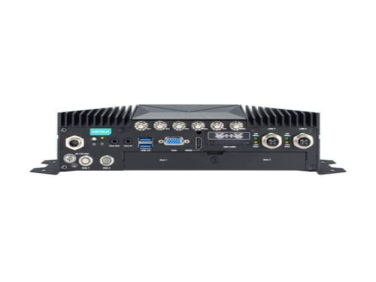

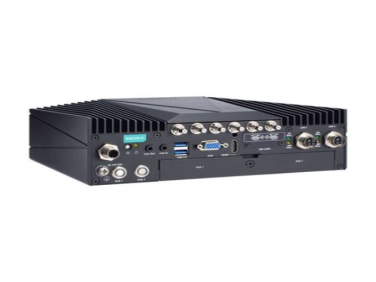

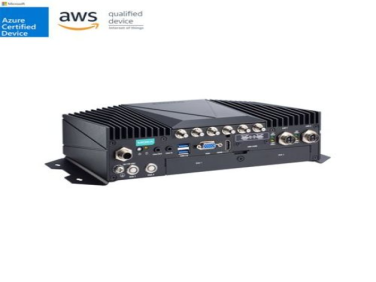

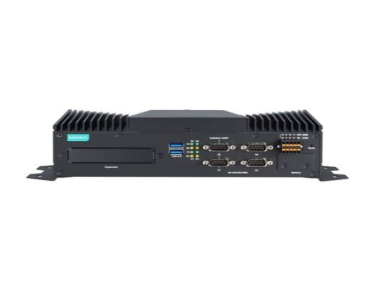

The MOXA V2406C-KL3 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the V2406C-KL3 delivers the performance and reliability necessary for seamless industrial operations.
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing
Get A QuoteFirst and foremost, the V2406C-KL3 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.
Moreover, powered by a robust processor, the V2406C-KL3 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.
In addition, the device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.
Furthermore, the V2406C-KL3 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.
Lastly, the computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.
The V2406C-KL3 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.
With a powerful Intel® Core™ i7 processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.
Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.
The V2406C-KL3 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.
The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.
| Specification | Details |
|---|---|
| CPU | Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz) |
| System Memory Slot | SODIMM DDR4 slot x 2 |
| DRAM | 32 GB max |
| Graphics Controller | Intel® HD Graphics 620 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2 mSATA slots x 1 |
| Supported OS | Order via the Moxa Computer Configuration System (CCS): Windows 10 Embedded IoT Ent 2019 LTSC 64-bit Windows 10 Embedded IoT Ent 2021 LTSC 64-bit WL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19) KL Models: Debian 9 (kernel 4.9) Download Drivers From Website: Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers |
| Computer Interface | Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2 Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male) Digital Input: DIs x 6 Digital Output: DOs x 2 USB 3.0: USB 3.0 hosts x 4, type-A connectors Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack Video Output: VGA x 1, 15-pin D-sub connector (female), HDMI x 1, HDMI connector (type A) Expansion Slots: mPCIe slots x 2 |
| Digital Inputs | Connector: Screw-fastened Euroblock terminal I/O Mode: DI Isolation: 3k VDC Sensor Type: Wet contact (NPN), Dry contact Dry Contact: Logic 0: Close to GND, Logic 1: Open Wet Contact (COM to DI): Logic 0: 10 to 30 VDC, Logic 1: 0 to 3 VDC |
| Digital Outputs | Connector: Screw-fastened Euroblock terminal 10-pin terminal block Current Rating: 200 mA per channel I/O Type: Sink Voltage: 0 to 30 VDC Isolation: 3k VDC |
| LED Indicators | System: Power x 1, Storage x 1 LAN: 2 per port (10/100/1000 Mbps) Serial: 2 per port (Tx, Rx) |
| Serial Interface | Baudrate: 50 bps to 115.2 kbps Connector: DB9 male ESD: Contact: 6 kV; Air: 8 kV (level 3) Isolation: 2 kV Data Bits: 5, 6, 7, 8 Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only) Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 1.5, 2 Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND |
| Power Parameters | Input Voltage: 24 to 110 VDC Power Connector: M12 A-coded male connector Power Consumption (Max.): 70 W (max.) |
| Physical Characteristics | Housing: Aluminum IP Rating: IP20 Dimensions (without ears): 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in) Weight: 2,700 g (5.95 lb) Installation: Wall mounting (standard) Protection: PCB conformal coating available on request |
| Environmental Limits | Operating Temperature: -40 to 70°C (-40 to 158°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF Railway Fire Protection: EN 45545-2 EMC: EN 55032/35 Safety: EN 62368-1, IEC 62368-1, UL 62368-1 Railway: EN 50121-4, EN 50121-3-2, EN 50155:2017 Shock: IEC 60068-2-27, IEC 61373 Vibration: IEC 60068-2-64, IEC 61373 Declaration: Green Product: RoHS, CRoHS, WEEE |
| MTBF | Time: 382,506 hrs Standards: Telcordia (Bellcore), GB |
