NG # 03324-HW-MAXO-033

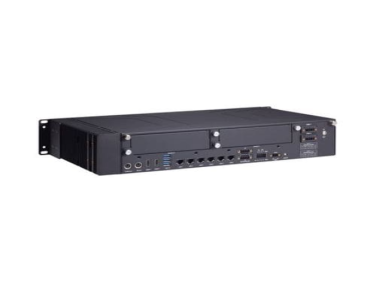

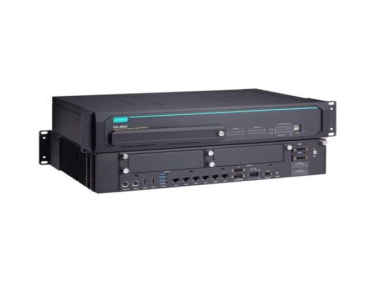

The MOXA DA-682C-KL3 Industrial Computing Device is a powerful and reliable solution for industrial computing needs. With its rugged design, high-performance computing capabilities, advanced security features, and flexible connectivity options, it stands out as an ideal choice for enhancing your industrial operations. Whether upgrading your current computing infrastructure or looking for a robust device for harsh environments, the DA-682C-KL3 delivers the performance and reliability necessary for seamless industrial operations.
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing
Get A QuoteFirst and foremost, the DA-682C-KL3 is designed with industrial-grade components, ensuring durability and reliability in harsh environments. It can withstand extreme temperatures, vibrations, and shocks, making it ideal for industrial applications.
Moreover, powered by a robust processor, the DA-682C-KL3 delivers high-performance computing capabilities, ensuring fast and reliable processing for critical industrial applications.
In addition, the device integrates advanced security features, including secure boot and TPM 2.0, ensuring that your computing environment remains secure from potential threats and unauthorized access.
Furthermore, the DA-682C-KL3 supports a variety of connectivity options, including multiple Ethernet ports and USB interfaces, providing flexibility for various industrial networking needs.
Lastly, the computing device features an intuitive web-based interface and support for SNMP, allowing easy setup, configuration, and management of your industrial network.
The DA-682C-KL3 is built with industrial-grade components, ensuring reliable performance in harsh and challenging environments.
With a powerful Intel® Core™ i7 processor and ample memory, this device provides fast and reliable computing capabilities for critical industrial applications.
Robust security protocols, including TPM 2.0 and Secure Boot, protect your computing environment from potential threats, ensuring secure operations.
The DA-682C-KL3 supports multiple connectivity options, including Ethernet, USB, and serial ports, providing versatility for various industrial networking needs.
The intuitive web-based interface and SNMP support make setup, configuration, and management straightforward and efficient.
| Specification | Details |
|---|---|
| CPU | Intel® Core™ i3-7100U processor (3M cache, up to 2.40 GHz) |
| System Memory Slot | SODIMM DDR4 slot x 2 |
| DRAM | 32 GB max. capacity (SODIMM x 2, each supporting 2133 MHz and 16 GB maximum per module) |
| Graphics Controller | Intel® HD Graphics 630 |
| Storage Slot | 2.5-inch HDD/SSD slots x 2, mSATA slots x 1 |
| Supported OS | Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Linux Debian 9 (Note: OS available by CTOS) |
| Computer Interface | USB 2.0: USB 2.0 hosts x 3, type-A connectors (2 ports on the front panel, 1 port inside the computer) USB 3.0: USB 3.0 hosts x 3, type-A connectors (3 ports on the rear panel) Video Output: HDMI x 2, HDMI connector (type A) Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6 Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block) |
| LED Indicators | System: Power x 1, Storage x 1, Programmable x 8 Serial: 2 per port (Tx, Rx) LAN: 2 per port (10/100/1000 Mbps) |
| Serial Interface | Baudrate: 300 bps to 115.2 kbps ESD: 8 kV (level 4) Isolation: 2 kV Serial Standards: RS-232/422/485 Surge: 2 kV Connector: Terminal block Serial Signals: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485-2w: Data+, Data-, GND RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND |
| Power Parameters | Input Current: 100 to 240 VDC, 0.9 A (max), 100 to 240 VAC, 50/60 Hz, 0.9 A (max) Power Button: Reset button (front panel), ON/OFF (rear panel) |
| Physical Characteristics | Housing: Metal Dimensions (without ears): 440 x 282 x 88 mm (17.32 x 11.08 x 3.46 in) Weight: 9,900 g (21.82 lb) Installation: 19-inch rack mounting |
| Environmental Limits | Operating Temperature: -40 to 70°C (-40 to 158°F) Storage Temperature (package included): -40 to 85°C (-40 to 185°F) Ambient Relative Humidity: 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 300 A/m, IEC 61000-4-11 Power Substation: IEC 61850-3 IEEE: 1613 Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2 Safety: UL 60950-1, IEC 60950-1, UL 62368-1, IEC 62368-1 Protection Relay: IEC 60255 Declaration: Green Product: RoHS, CRoHS, WEEE |
| MTBF | Time: 365,750 hrs Standards: Telcordia SR332 |
