NG # 03308-HW-MAXO-017

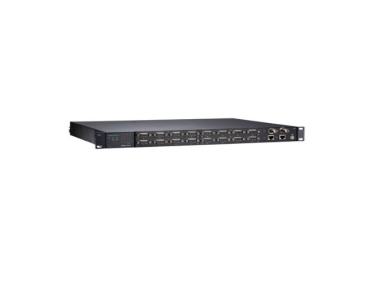

The MOXA CN2610 Serial Device Server is an indispensable tool for modern network infrastructure. Its versatility, reliability, and advanced features make it an excellent choice for various industrial applications. By integrating the CN2610 into your network, you can enhance efficiency, reduce costs, and improve data communication across your systems.
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing
Get A QuoteThe MOXA CN2610 supports multiple serial interfaces, including RS-232, RS-422, and RS-485, ensuring compatibility with a broad range of devices. This versatility enables easy integration into existing systems without the need for extensive modifications.
With a powerful processor, the CN2610 ensures rapid and reliable data transmission. Built-in surge protection and redundant power inputs further enhance reliability, guaranteeing continuous operation even in challenging environments.
The MOXA CN2610 comes with intuitive management software that simplifies configuration and monitoring. The web-based interface allows for remote management, providing the convenience of overseeing multiple devices from a central location.
Security is a top priority for the MOXA CN2610, which includes advanced features such as SSL encryption, IP filtering, and password protection. These measures ensure that your data remains secure from unauthorized access.
Designed for industrial environments, the CN2610 features a compact and rugged design that can withstand harsh conditions. It offers flexible installation options, including DIN-rail and wall-mount, to accommodate various settings.
When selecting a MOXA CN2610 model, consider the following factors:
| Category | Specification |
|---|---|
| Ethernet Interface | |
| 10/100BaseT(X) Ports | 2 |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Ethernet Software Features | |
| Configuration Options | Serial Console, Telnet Console, Windows Utility, Device Search Utility (DSU), Web Console (HTTP/HTTPS) |
| Management | ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP |
| MIB | MIB-II |
| Security | HTTPS/SSL, RADIUS, SSH, PAP, CHAP |
| Unicast Routing | RIPV1/V2, Static Route |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
| Security Functions | |
| Authentication | Local database (password only), RADIUS |
| Encryption | HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1 |
| Security Protocols | SNMPv3, SSHv2 |
| Serial Interface | |
| Connector | 8-pin RJ45 |
| No. of Ports | 16 |
| Serial Standards | RS-232 |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Terminal mode, Reverse Telnet mode, PPP mode, DRDAS mode, Redundant COM mode, Disabled |
| Baudrate | 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, DTR/DSR, XON/XOFF |
| RS-485 Data Direction Control | ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
| Terminator for RS-485 | 120 ohms |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1) |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND<br>RS-422: Tx+, Tx-, Rx+, Rx-, GND<br>RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND<br>RS-485-2w: Data+, Data-, GND |
| Power Parameters | |
| No. of Power Inputs | 2 |
| Input Current | 130 mA @ 110 VAC |
| Input Voltage | 100 to 240 VAC (50/60 Hz) |
| Reliability | |
| Automatic Reboot Trigger | Built-in WDT |
| Alert Tools | Built-in buzzer and RTC (real-time clock) |
| Physical Characteristics | |
| Housing | Metal |
| Installation | 19-inch rack mounting |
| Dimensions (with ears) | 480 x 198 x 45.5 mm (18.9 x 7.80 x 1.77 in) |
| Dimensions (without ears) | 440 x 198 x 45.5 mm (17.32 x 7.80 x 1.77 in) |
| Weight | 2,640 g (5.82 lb) |
| Environmental Limits | |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature (package included) | 0 to 55°C (32 to 131°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV<br>IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m<br>IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV<br>IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV<br>IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m<br>IEC 61000-4-8 PFMF<br>IEC 61000-4-11 |
| Safety | UL 60950-1 |
| Vibration | IEC 60068-2-6 |
| Freefall | IEC 60068-2-32 |
| Declaration | Green Product: RoHS, CRoHS, WEEE |
| MTBF | 604,346 hrs |
| Standards | Telcordia (Bellcore) Standard TR/SR |
