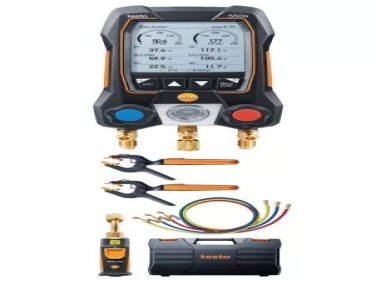

Testo 550s Smart Digital Manifold Kit with wireless temperature and vacuum probes and hoses, -14 to 870 psi

  • NG # 01538-HW-TESTO-011

  • MF # 01538-HW-TESTO-011

  • SKU # 01538-HW-TESTO-011

Features a two-way valve block, this rugged manifold enables you to carry out measurements on refrigeration, air conditioning systems, and heat pumps quickly and easily. Additionally, the large display shows all the results at a glance and comes equipped with probes to identify temperature changes and measure vacuum, along with a hose set.

Manufactured By :
Testo

Stock
Limited

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

Make measurements on refrigeration, air conditioning systems, and heat pumps faster and easier than ever before. Features a large display to show all measurement data at a glance and simplifies the results. Measurement menus guide you step by step through the measurement and allow automatic determination of parameters such as superheat, pressure-drop test, tightness test, or evacuation.

Specification

Specification

Pressure
Measuring Range-14 to 870 psi (-1 to 60 bar)
Accuracy (at 71.6°F)±0.5% fs
Resolution0.1 psi (0.01 bar)
Probe Connections3 x 7/16" - UNF
Overload940 psi
Temperature
Measuring Range-58 to 302°F (-50 to 150°C)
Accuracy (at 71.6°F)±0.9°F
Resolution0.1°F
Probe Connections2 x plug-in (NTC)
General Specifications
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
BatteryType: 4 x AA batteries
Life: 250 hrs with no illumination, no Bluetooth®; 100 hrs with illumination and Bluetooth®
Auto Power OffAfter 10 minutes when not connected via Bluetooth
Bluetooth Technology/RangeBluetooth® 5.0 (up to 500')
CompatibilityRequires iOS 11.0 or newer/Android 6.0 or newer
Requires mobile terminal device with Bluetooth® 4.0
Protection ClassIP54
Dimensions8.3 x 4.8 x 2.4" (210.82 x 121.92 x 60.96 mm)
Weight1.8 lbs
