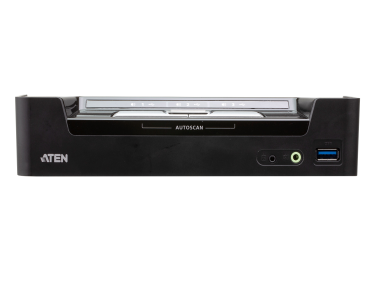

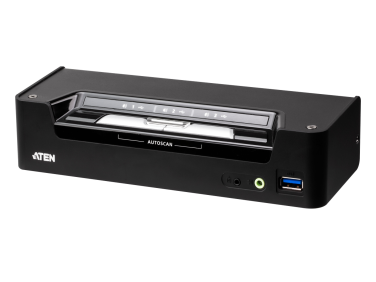

3-Port USB-C DisplayPort Hybrid KVMP™ Switch

  • NG # 03844-HW-ATEN-019

  • MF # CS1953

The CS1953, the industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity. With the DisplayPort monitor set up on your desktop and access to up to two PCs via DisplayPort and a laptop (or other mobile device) via USB-C, you can expect a rich experience with outstanding 4K visual clarity, as well as fast switching between multiple computers and mobile flexibility.

Manufactured By :
ATEN
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The ATEN CS1953 is a hybrid KVMP™ Switch that integrates USB-C device and DisplayPort PC into a desktop workstation. Taking a giant step forward from prior digital-interfaced KVM models, the CS1953 comes with USB Type-C functionality that transfers video, audio, data, and even provides USB Power Delivery 3.0 for USB-C device charging. That means with a single USB-C cable, users can reduce bulky cable setups and experience a better working environment.

Specification

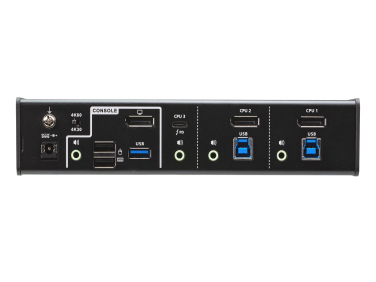

  • One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
  • Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Provides USB Power Delivery 3.0 for USB-C device charging up to 45W1
  • Computer selection via pushbuttons, hotkeys, mouse2, and remote port selector
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant3
  • Independent switching of KVM, USB peripheral, and audio focus4
  • Supports HD Audio4
  • Supports DisplayPort Dual-Mode technology (DP++)5
  • Firmware upgradeable
  • Bus-powered6
