RFQ

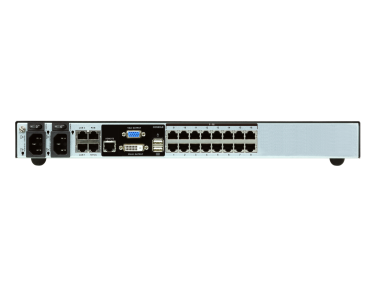

Aten 1-Local/4-Remote Access 16-Port Multi-Interface Cat 5 KVM over IP Switch KN4116VA

  • NG # 03830-HW-ATEN-005

  • MF # KN4116VA

ATEN’s 4th generation of KVM over IP switches exceed expectations. The KN4116VA features superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed.

Manufactured By :
ATEN
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network. In addition, it offers out-of-band access with external modem support for BIOSlevel troubleshooting when the network is down.

Specification

Hardware

  • High port density – RJ-45 connectors and Cat 5e/6 cable for up to 16 ports
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
  • Four separate buses for remote KVM over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based
  • serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
  • Monitor and control up up to 16 computers on a single level, or control up to 256 computers in a cascade*
