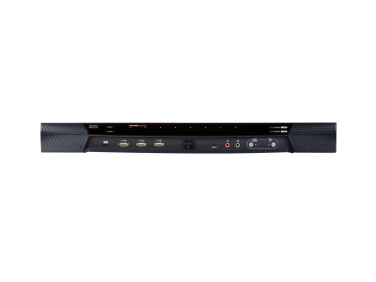

ATEN 1-Local/1-Remote Access 16-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200)

  • NG # 03827-HW-ATEN-002

  • MF # KN1116VA

Aten´s new generation of KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

Manufactured By :
ATEN
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

Specification

Hardware

  • High port density – RJ-45 connectors for up to 16 ports in a 1U housing
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
  • Two separate buses for one local console access and one remote over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
    Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides PS/2 and USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Virtual Media support lets you map DVD-CD-ROMs and other storage media to a remote server
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz for local and remote sessions1
  • Monitor and control up to 16 computers on a single level, or control up to 256 computers in a cascade2.

Management

  • Up to 64 user accounts
  • UP to 32 concurrent logins
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Firmware upgradeable
  • Out-of-Band Access – Modem dial-in/dial-out/dial-back support
  • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management Software
  • Integration with ATEN CCVSR Video Session Recording Software1
  • Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
  • Power Association enables the switch’s KVM ports to be associated with ATEN’S PDUs power outlets for remote power management of the servers from the switch’s interface
  • Power Over the NET™ integration for remote power control, plus support for 3rd party power distribution units (PDUs)
  • Manage browser access methods (Browser, http, https)
  • IPv6 capable
