4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

  • NG # 03845-HW-ATEN-020

  • MF # CS1844

Manufactured By :
ATEN
Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

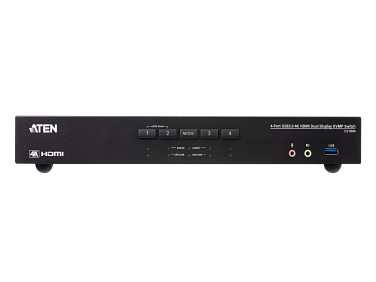

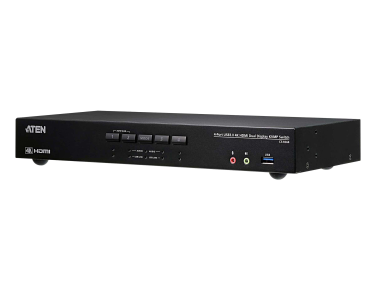

The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

Specification

  • One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
  • Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports console keyboard emulation / bypass feature
  • Supports console mouse emulation / bypass feature
  • Independent switching of KVM, USB peripheral, and stereo audio focus3
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • HDMI compliant; HDCP compliant
  • Supports HD audio3
  • Power on detection
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable
