CFAK 22U9500/AMP Capacitive Point Level Sensor

  • NG # 024624-HW-BCID-024

CFAK 22U9500/AMP Capacitive Point Level Sensor is a robust frequency-sweep level sensor designed for reliable point detection in demanding environments. Featuring voltage output, AMPSEAL 16 connector, IP69K protection, and wide temperature range, it ensures stable performance in harsh industrial applications.



Manufactured By :
Baumer
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

CFAK 22U9500/AMP Capacitive Point Level Sensor is engineered for accurate and dependable point level detection in harsh industrial conditions. Using advanced frequency-sweep technology, it ensures high measurement stability even in challenging media. Its rugged design includes IP69K protection, wide operating temperature range, and a durable AMPSEAL 16 connector. With voltage output and robust construction, it is ideal for mobile machinery, tanks, and process monitoring applications.

Specification

Measurement Type: Contact with medium
Mounting Type: Non-flush (M22 x 1.5 O-ring port)
Supply Voltage: 4.75 … 5.25 VDC
Current Consumption: Max. 42 mA (typ. 10 mA)
Output Type: Analog voltage output
Output Signal Levels:

  • In air: 2.75 … 3.25 V
  • In liquid: 1.25 … 1.75 V
  • Fault: 0.50 … 1.00 V

Response Time: < 1000 ms
Load Resistance: ≥ 930 Ω
Capacitive Load: < 200 nF
Short Circuit Protection: Yes
Reverse Polarity Protection: No
Housing Type: Cylindrical threaded
Housing Material: Glass-fiber reinforced polyamide + aluminium
Dimensions: Ø 22 mm, length 87 mm
Connection Type: AMPSEAL 16, 3-pin connector
Protection Class: IP69K
Operating Temperature: -40 … +85 °C
Media Temperature: -40 … +100 °C
Storage Temperature: -55 … +125 °C

Other Baumer Products

Photoelectric Distance Sensor O300.DI.2-GLUBO.72CU
Baumer Industrial Tools & Accessories 024607-HW-BCID-007

MFRM 08N1524/PL Magnetic Proximity Sensor
Baumer Industrial Tools & Accessories 024627-HW-BCID-027

Fiber optic sensor FVDK 10N5101
Baumer Industrial Tools & Accessories 024616-HW-BCID-016

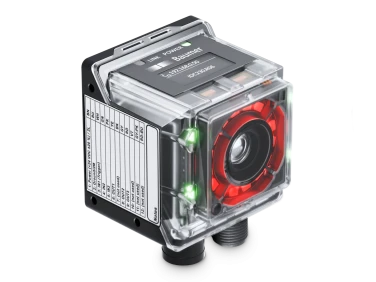

IDC200.R06-ETW Multicode Reader
