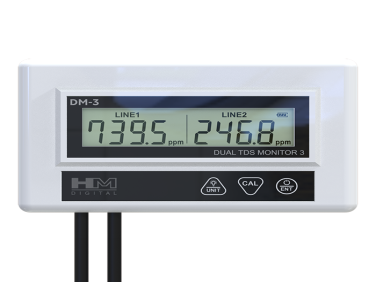

DM-3: Commercial In-Line Dual EC/TDS Monitor

  • NG # 04256-HW-HM-015

The HM Digital DM‑3 is a commercial‑grade inline Dual EC/TDS monitor designed to continuously measure and display total dissolved solids (TDS) and electrical conductivity (EC) levels of both feed (input) and product (output) water in water filtration systems. It features a large backlit display, digital calibration, dual sensors, shielded cables, and robust diagnostics for reliable performance in professional applications such as reverse osmosis, deionized water systems, aquariums, hydroponics, and potable water treatment.

Manufactured By :
HM Digital
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HM Digital DM‑3 is engineered for precise water quality monitoring in commercial and industrial environments. It continuously measures the EC and TDS of incoming and outgoing water in filtration systems, providing real‑time data that helps ensure optimal performance and water purity. Equipped with advanced microprocessor technology and dual electrode probes, this monitor offers accurate and dependable readings. The large backlit LCD screen makes measurements easy to read in low‑light conditions, while diagnostic error messaging helps identify potential issues quickly. Factory‑calibrated with digital calibration and protected by shielded sensor cables, the DM‑3 combines durability with straightforward usability, making it suitable for a wide range of applications including reverse osmosis (RO), deionized (DI) water systems, hydroponics, aquariums, and general water treatment.

Specification

  • Measurement Range: EC 0–9999 µS/0–9.99 mS, TDS 0–5000 ppm/0–5 ppt
  • Resolution: EC 0.1 µS (0–99.9), 1 µS (100–999), 10 µS (1000–9990), 0.01 mS (0.00–9.99); TDS 0.1 ppm (0–99.9), 1 ppm (100–999), 10 ppm (1000–5000), 0.01 ppt (0.00–5.00)
  • Accuracy: ±2 %
  • Conversion Factor: NaCl (average 0.5)
  • Cable Length: 1.2 m (3.9 ft), shielded sensor cables
  • Sensor Type: Dual 1/4″ diameter quick‑connect electrode probes (model SP‑3 included)
  • Digital Calibration: Factory calibrated to 342 ppm NaCl with separate recalibration capability for each line
  • Power Source: 2 × AA batteries (included)
  • Display: Extra‑large backlit LCD screen
  • Size: 11.6 × 1.9 × 7.0 cm (4.6 × 0.7 × 2.8 in)
  • Weight: 225 g (7.9 oz)
  • Enhanced Features: Digital diagnostics and error messaging, robust water‑resistant casing, variable mounting bracket
