PPH-1000: Single Line pH and Temp Controller

  • NG # 04252-HW-HM-011

The HM Digital PPH-1000 is a single-line pH and temperature controller designed to monitor and manage pH levels in industrial and commercial water systems. It combines precise pH measurement with temperature compensation and fully adjustable relay outputs to maintain desired water chemistry conditions.

Manufactured By :
HM Digital
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

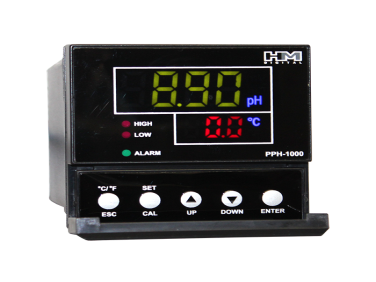

The HM Digital PPH-1000 is a reliable and compact controller that provides accurate pH and temperature monitoring for a variety of demanding environments. It features a wide measurement range from 0.01 to 14.00 pH, automatic temperature compensation (ATC), and digital calibration, allowing users to achieve consistent and dependable readings. The bright LED display shows real-time pH and temperature data, while the unit’s adjustable high and low relay set points enable automated control of connected equipment based on preset thresholds. An industry‑standard 4–20 mA output facilitates integration with external systems and controllers, and the included ¾″ sensor probe ensures straightforward installation and operation within commercial or industrial water treatment applications.

Specification

  • Measurement range: 0.01 – 14.00 pH
  • Accuracy: ±0.5% full scale
  • Resolution: 0.01 pH / 0.1 °C (0.1 °F)
  • Automatic Temperature Compensation (ATC): Yes (1–60 °C)
  • Calibration: Digital to any point
  • Relay controls: Two adjustable relays (upper and lower limits)
  • Output signal: 4–20 mA
  • Alarm: Optional setting
  • Display: Bright 5/8″ LED display
  • Sensor probe: ¾″ electrode with 3 m (9.8 ft) cable
  • Power source: AC 110 V / 220 V
  • Dimensions: 7.2 × 7.2 × 11.1 cm (2.8 × 2.8 × 4.4 in)
  • Weight: 235 g (8.3 oz)
