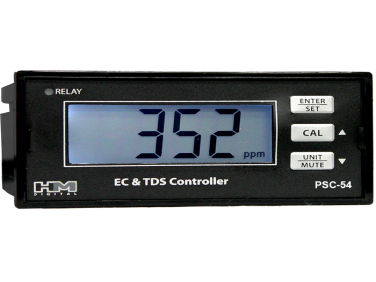

PSC-54: Single Line, EC/TDS Mini Controller with 4-20mA Output

  • NG # 04249-HW-HM-008

The HM Digital PSC‑54 is a compact single‑line EC/TDS mini controller designed for precise monitoring and control of water quality in commercial and industrial applications. It measures electrical conductivity (EC) and total dissolved solids (TDS) over an extended range and features a standard 4‑20 mA output for integration with control systems, along with an adjustable relay to automate pumps or valves based on user‑defined set points.

Manufactured By :
HM Digital
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The HM Digital PSC‑54 is engineered for water treatment professionals who require dependable and continuous measurement of EC and TDS. Its extended measurement range covers both low and high conductivity and dissolved solids levels, making it suitable for diverse water quality scenarios. The controller includes a clear LCD with temperature display and offers digital calibration for dependable accuracy. A 4‑20 mA output signal allows seamless connection to industrial PLCs, data loggers, and other monitoring equipment, while the built‑in relay can automatically control external devices like pumps or valves when measured values cross set thresholds. With a robust stainless‑steel electrode and complete set of included components, the PSC‑54 provides a reliable solution for automated water quality management.

Specification

  • Measurement Range: TDS 0–9999 ppm (mg/L), 0–10.0 ppt (g/L); EC 0–9999 µS/cm, 0–20.00 mS/cm
  • Accuracy: ± 2 %
  • Resolution: 0.1 ppm/µS (0–99.9), 1 ppm/µS (100–9999), 0.1 ppt/mS
  • Automatic Temperature Compensation: Yes (1 – 65 °C)
  • Calibration: Digital to any point
  • Output Signal: Standard 4‑20 mA for integration with external systems
  • Relay Control: User‑defined set point with simple switch control
  • Display: 2.3″ LCD with backlight, includes temperature readout
  • Probe: 1/2″ NPTF stainless‑steel electrode with 3 m cable
  • Power Source: AC 110 V / 220 V selectable
  • Dimensions: 96 × 48 × 100 mm (3.8 × 1.9 × 3.9 in)
  • Weight: 261 g (9.02 oz)
