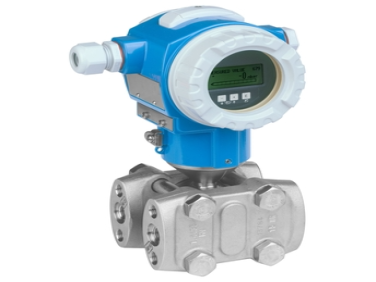

Endress+Hauser Differential pressure Deltabar PMD75

  • NG # 006222-HW-ENDRESS-022

The Deltabar PMD75 is a robust differential pressure transmitter equipped with a piezoresistive sensor and welded metallic membrane for continuous measurement of liquids, vapors, and gases across all industries. Its 3-key operation and integrated HistoROM module make setup and parameter management simple and reliable.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for high safety performance, the PMD75 complies with IEC 61508 and is suitable for SIL2/3 applications. It offers easy commissioning, dependable long-term operation, and streamlined handling of device and process data, making it ideal for demanding industrial environments.

Specification

Measuring principle

Differential pressure

Characteristic

Digital transmitter with metallic measuring diaphragms
Modular transmitter
Long-term stability
High static pressure/Overload resistance
Secondary process barrier

Supply voltage

4...20 mA HART
10,5...45V DC (Non Ex):
Ex ia: 10,5...30V DC
PROFIBUS PA:
9...32 V DC (Non Ex)
FOUNDATION Fieldbus:
9...32 V DC (Non Ex)

Reference Accuracy

Standard: 0.05%
Platinum: up to 0.035%

Long term stability

0.03 % of URL/ year
0.05 % of URL/ 5 years
0.08 % of URL/ 10 years

Process temperature

-40°C...85°C
(-40°F...185°F)

Ambient temperature

-50°C...85°C
(-58°F...185°F)

Measuring cell

10 mbar...250 bar
(0.15 psi...3750 psi)

Smallest calibratable span

1 mbar (0.015 psi)

Vacuum resistance

50 mbar (0.73 psi)

Max. Turn down

100:1

Max. overpressure limit

On one side:
420 bar
(6300psi)

Process connection

1/4-18NPT
RC1/4"

Material process membrane

316L, AlloyC,
Tantal,
Gold-Rhodium

Material gasket

Viton, PTFE, EPDM, NBR

Fill fluid

Silicone oil
Inert oil

Material housing

316L, Die-cast aluminum

Communication

4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC, UK Ex

Safety approvals

SIL

Design approvals

NACE MR0103
EN10204-3.1

Marine approvals

GL/ ABS

Specialities

Diagnostic functions

Successor

PMD75B
