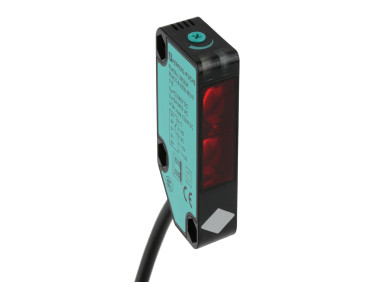

Pepperl + Fuchs Diffuse Photoelectric Sensor, Block Sensor, 0 → 2.5 m Detection Range

  • NG # 03002-HW-PEP-022

  • MF # RLK31-8-2500-IR/31/115

Unlike retroreflective sensors that require a reflector, diffuse photoelectric sensors detect light bounced directly off the target object. Achieving an extended 2.5 m detection range in a diffuse format requires high-power DuraBeam LED/Laser optics combined with advanced Multi Pixel Technology (MPT) for precision triangulation and adjustable background suppression.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RLK31 range of diffuse photoelectric sensors from Pepperl + Fuchs offers a compact sensor suitable for factory automation applications within industrial environments. Diffuse sensors work when an object moves within the sensing range by using light from the emitter which will strike the target object within range which will then be reflected directly into the receiver unit and activate the sensor. Diffuse sensors are used in part presence, error proofing, fill, product height and lid presence applications.

Specification

ParameterTechnical Specification
Model Reference ExamplesOBT2500-R200-2EP-IO-V1, OBT2500-R201-2EP-IO-V1
Detection / Adjustment Range0 – 2.5 m (100 – 2500 mm)
Background Suppression Range$100 \dots 2500\text{ mm}$ (adjustable via multi-turn potentiometer or optical teach button)
Communication / ProtocolIO-Link V1.1 (Integrated Smart Sensor Profile)
Light SourceModulated visible Red LED ($640\text{ nm}$) or Infrared LED
Housing StyleMedium-duty Rectangular Block (R200 / R201 series)
Operating Voltage ($U_B$)10 – 30 V DC
Output Type & Logic2x Push-Pull outputs (PNP/NPN selectable, short-circuit & reverse polarity protected)
Switching ModeLight-ON / Dark-ON (Selectable via IO-Link or physical teach control)
Response Time / Frequency$\le 1\text{ ms}$ switching response / approx. 500 – 1000 Hz
Housing MaterialPolycarbonate / ABS high-impact housing
Optical Lens MaterialPMMA plastic lens
Ambient Operating Temperature-40 °C to +60 °C (-40 °F to +140 °F)
Enclosure ProtectionIP67 / IP69K
Connection TypesM12 4-pin connector, M8 4-pin connector, or integrated 2 m cable
