NG # 2266-HW-PEP-018
Pepperl+Fuchs magnetic proximity sensors use magnetic field detection—typically via Hall effect sensors, magnetoresistive (MR) elements, or reed switches—to detect the presence of a permanent magnet target (such as a neodymium magnet).
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

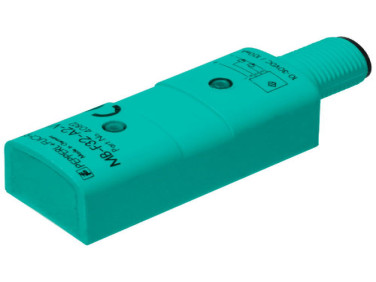

Get A QuoteOur magnetic field sensor selection consists of the M12 housing style for traditional magnetic detection applications. Also offered is a non-contact, piston detection sensor for use with steel hydraulic cylinders. These magnetic sensors offer reliable piston magnet detection and are easily mounted, without the need for mounting slots or holes in the cylinder.
| Parameter | Technical Specification |
| Housing Sizes | M8, M12, M18 cylindrical; slot-mount / C-slot / T-slot for cylinders |
| Operating Principle | Magnetoresistive / Hall Effect / Reed Switch |
| Assure Sensing Distance ($s_n$) | Up to 60 – 70 mm (varies by target magnet strength) |
| Operating Voltage ($U_B$) | 10 – 30 V DC (Transistor) or 20 – 250 V AC/DC (2-wire Reed) |
| Output Types | 3-wire PNP / NPN (NO/NC), 2-wire DC, or Reed Switch contacts |
| Switching Frequency ($f$) | Up to 5 kHz (Solid-state Hall/MR variants) |
| Reverse Polarity Protection | Integrated (Solid-state models) |
| Short-Circuit Protection | Pulsing / Integrated |
| Housing Material | Stainless steel 1.4305 / AISI 303, Nickel-plated brass, or PBT plastic |
| Operating Temperature | -25 °C to +70 °C (-13 °F to +158 °F) |
| Enclosure Protection | IP67 / IP68 |
| Connection Types | M8 / M12 quick-disconnect connector or integrated cable (PVC/PUR) |
