Ubiquiti Enterprise Campus 48 PoE

  • NG # 04381-HW-UBI-020

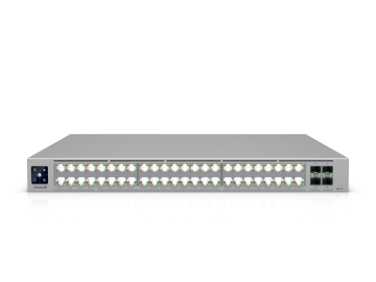

The Ubiquiti UniFi Enterprise Campus 48 PoE (ECS-48-PoE) is a top-tier, high-availability Layer 3 managed switch designed for high-density campus and large-scale enterprise deployments. It is distinguished from the standard Pro XG series by its focus on mission-critical uptime, featuring dual hot-swappable power supplies and four hot-swappable fan modules.

Manufactured By :
Ubiquiti Network
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Enterprise Campus 48 PoE is a professional enterprise product and typically requires deal registration through authorized partners like Westbase.io. It is also available via the Ubiquiti Store and enterprise retailers like CDW.

Specification

Networking Interface(32) 10 GbE RJ45; (16) 2.5 GbE RJ45; (4) 25G SFP28 ports
PoE Standards(48) PoE+++ (802.3af/at/bt Type 4)
Max. PoE Wattage2,150W (200-240V AC Shared Mode); 1,750W (100-120V)
Switching Capacity920 Gbps
Forwarding Rate684.48 Mpps
MAC Table Size128,000 entries
Power Modules(2) Hot-swappable 1,200W AC/DC modules
Cooling(4) Hot-swappable fan modules (3+1 redundancy)
Dimensions442.4 x 496 x 43.7 mm (17.4 x 19.5 x 1.7")
Weight9.46 kg (20.9 lb) without brackets
