New Ubiquiti Lite 16 PoE

  • NG # 04384-HW-UBI-023

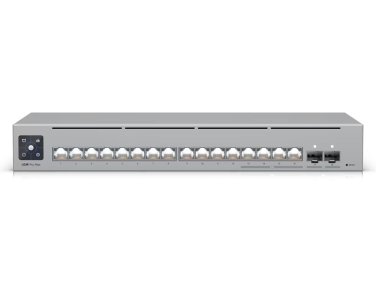

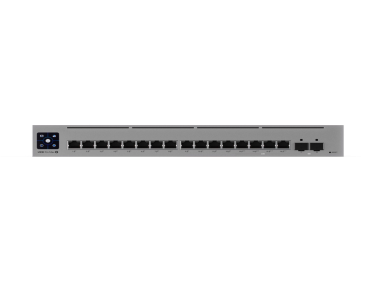

The Ubiquiti UniFi Pro Max 16 PoE Switch is a high-performance Layer 3 managed switch designed for modern business and enterprise networks. It features 16 Ethernet ports with advanced PoE support, including 12 Gigabit PoE+ ports, 4 multi-gig 2.5GbE PoE++ ports, and 2 high-speed 10G SFP+ uplink ports. With a total 180W PoE budget, Etherlighting technology, and flexible rack, wall, or desktop mounting options, this switch is ideal for powering access points, IP cameras, VoIP phones, and other network devices.

Manufactured By :
Ubiquiti Network
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Ubiquiti UniFi Pro Max 16 PoE is built to deliver powerful networking performance for professional environments that require reliable connectivity, advanced management, and flexible deployment options. Designed as part of the UniFi ecosystem, the switch supports Layer 3 functionality, enabling efficient traffic routing and advanced network management for growing infrastructures.

This managed switch combines 12 Gigabit PoE+ ports and 4 high-speed 2.5GbE PoE++ ports, allowing users to connect and power a wide range of devices such as WiFi access points, surveillance cameras, VoIP systems, and high-bandwidth workstations. The addition of dual 10G SFP+ uplink ports provides fast backbone connectivity for servers, storage systems, or aggregation switches.

The switch offers an 84 Gbps switching capacity with a 42 Gbps non-blocking throughput and forwarding rates up to 62 Mpps, ensuring stable performance even in demanding network environments. It also includes advanced networking features such as VLAN support, QoS, DHCP services, inter-VLAN routing, ACLs, IGMP snooping, and link aggregation.

One of its standout features is Etherlighting technology, which visually indicates port location, speed, and VLAN information for easier cable management and troubleshooting. A built-in 1.3-inch touchscreen display provides quick access to essential device information and system status. Its compact design supports rack mounting, desktop placement, or wall installation, making it suitable for various deployment scenarios.

Specification

  • Product Model: USW-Pro-Max-16-PoE
  • Switch Type: Layer 3 Managed Switch
  • Total Ports: 18
  • 12 × 1GbE RJ45 PoE+ Ports
  • 4 × 2.5GbE RJ45 PoE++ Ports
  • 2 × 10G SFP+ Uplink Ports
  • Total PoE Budget: 180W
  • Maximum PoE Output: PoE++
  • Switching Capacity: 84 Gbps
  • Non-Blocking Throughput: 42 Gbps
  • Forwarding Rate: 62 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000
  • ARP Entries: 6,000
  • IPv4 Routes: 512
  • IPv4 Static Routes: 256
  • Packet Buffer Size: 1.5 MB
  • Supports DHCP Server and DHCP Relay
  • Supports Inter-VLAN Routing
  • QoS (DSCP) Support
  • Link Aggregation (LACP) Support
  • IGMP Snooping and Advanced IGMP Configuration
  • 802.1X Authentication Support
  • Port Mirroring and Port Isolation
  • Jumbo Frame Support
  • Etherlighting Technology Included
  • Built-in 1.3-inch Touchscreen Display
  • Mounting Options: Rack, Desktop, Wall
  • Enclosure Material: SGCC Steel
  • Operating Temperature: -5°C to 40°C
  • Operating Humidity: 10% to 90% Non-Condensing
  • Dimensions: 325.1 × 160 × 43.7 mm
  • Weight: 2.1 kg
  • UniFi Network Version Requirement: 8.1.127 or Later
