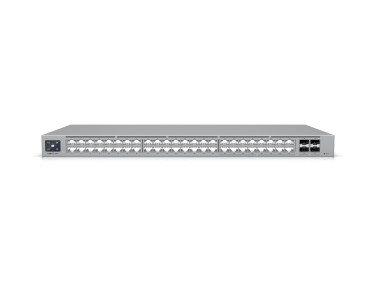

Ubiquiti Pro XG 48 PoE

  • NG # 04380-HW-UBI-019

The Ubiquiti UniFi Switch Pro XG 48 PoE is a high-performance Layer 3 managed enterprise switch designed for demanding network environments. It features 48 multi-gigabit PoE+++ Ethernet ports, 4 high-speed 25G SFP28 uplink ports, and an impressive 920 Gbps switching capacity. Built for advanced enterprise deployments, data-intensive applications, and next-generation Wi-Fi infrastructure, this 1U rackmount switch delivers powerful connectivity, high PoE output, and advanced UniFi management capabilities.

Manufactured By :
Ubiquiti Network
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Ubiquiti UniFi Switch Pro XG 48 PoE is engineered for enterprise-grade networking environments that require ultra-fast connectivity, extensive PoE support, and reliable Layer 3 switching performance. The switch includes 32 x 10GbE RJ45 ports and 16 x 2.5GbE RJ45 ports, all supporting PoE+++ output with up to 90W per port. It also provides 4 x 25G SFP28 uplink ports for high-bandwidth aggregation and backbone connectivity.

Designed for modern high-density deployments, the switch supports advanced Layer 2 and Layer 3 features including DHCP server, static routing, inter-VLAN routing, QoS, IGMP snooping, ACLs, port isolation, and advanced security controls. Its massive 920 Gbps switching capacity and 684 Mpps forwarding rate ensure smooth and stable data transfer for large enterprise networks, data centers, surveillance systems, and Wi-Fi 7 deployments.

The switch is equipped with a 1.3-inch touchscreen display for quick status monitoring and management. Ubiquiti’s Etherlighting technology helps identify port status, speed, and VLAN assignments visually, simplifying cable management in professional rack environments. With support for redundant DC power backup and a robust SGCC steel enclosure, the unit is designed for reliable long-term operation in enterprise racks and server rooms.

Specification

  • Model: USW-Pro-XG-48-PoE
  • Switch Type: Layer 3 Managed Switch
  • Form Factor: 1U Rackmount
  • Total Ports: 52
  • 32 x 10GbE RJ45 PoE+++ Ports
  • 16 x 2.5GbE RJ45 PoE+++ Ports
  • 4 x 25G SFP28 Uplink Ports
  • PoE Standard: PoE+++ (802.3bt Type 4)
  • Maximum PoE Output per Port: Up to 90W
  • Total PoE Budget:
    • 972W (100–120V AC)
    • 1080W (200–240V AC)
  • Switching Capacity: 920 Gbps
  • Non-Blocking Throughput: 460 Gbps
  • Forwarding Rate: 684 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 32,000
  • Packet Buffer Size: 8 MB
  • Static Routing Support
  • Inter-VLAN Routing Support
  • DHCP Server & DHCP Relay
  • QoS (DSCP)
  • IGMP Snooping
  • LACP Port Aggregation
  • 802.1X Authentication
  • Port Mirroring
  • Voice VLAN Support
  • Jumbo Frame Support
  • Etherlighting Port Identification
  • 1.3-inch Touchscreen Display
  • Redundant DC Power Backup Support
  • Operating Temperature: -5°C to 40°C
  • Operating Humidity: 10% to 90% Non-Condensing
  • Enclosure Material: SGCC Steel
  • Dimensions: 442 x 480 x 44 mm
  • Weight: Approximately 8.8 kg with mounting brackets
  • Management Platform: UniFi Network Application v9.1.120 or later
