NG # 00100-HW-LIN-056
Utilizing HDBaseT technology, this device extends HDMI resolutions up to 100m through Cat.6 network cable. It accommodates HDMI 18G resolutions, including 4K@60Hz 4:4:4 with HDR support. Additional features encompass ARC, RS-232, CEC, Ethernet pass-through, and bi-directional IR for streamlined control. Moreover, it supports PoC (power over cable), requiring a power supply connection from only one side of the installation.
Stock
5
in stock
Custom Pricing
Get A Quote
Stock
5
in stock
Custom Pricing

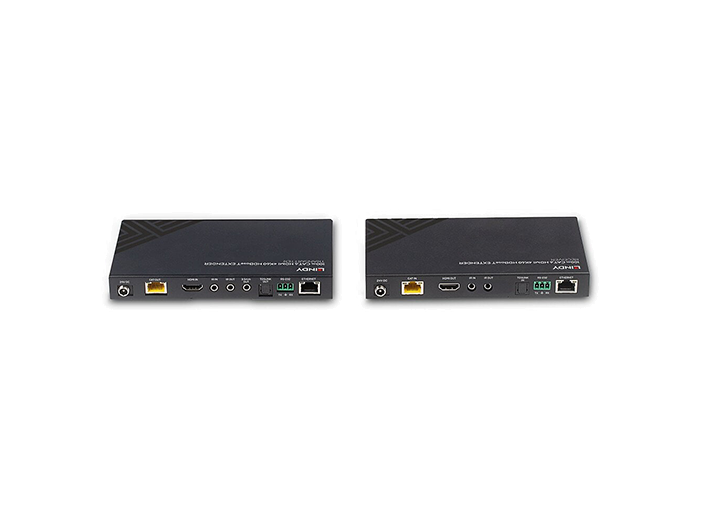

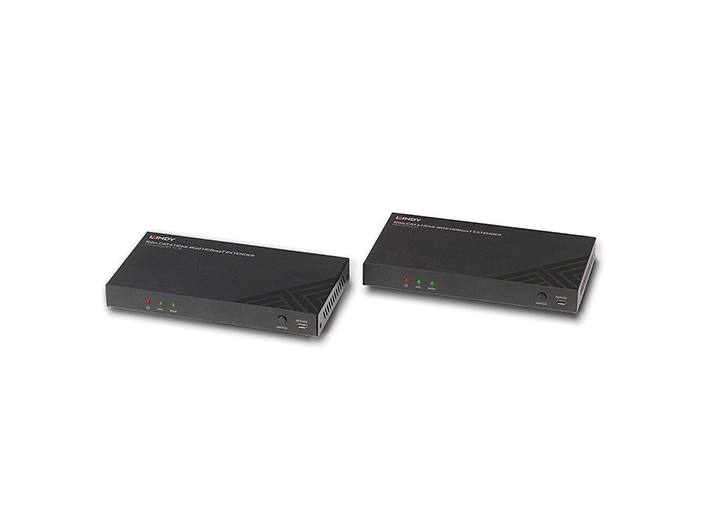

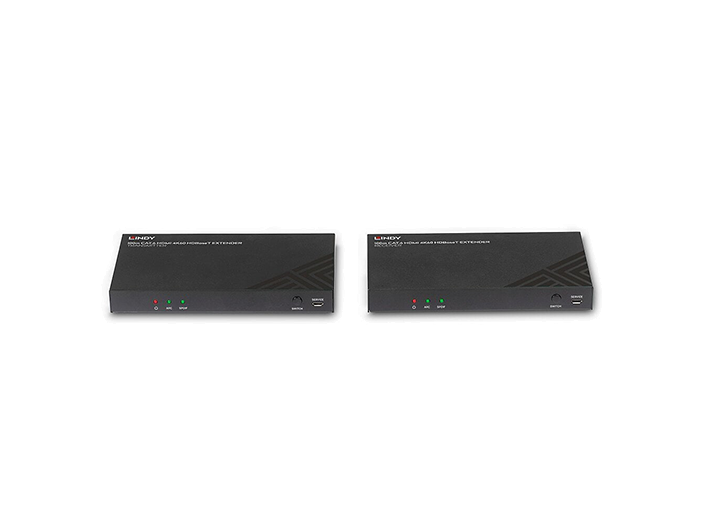

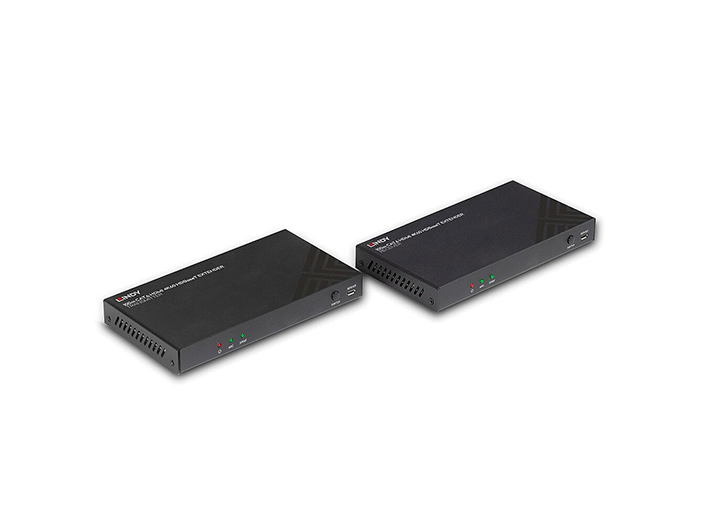

Get A QuoteThe Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
Specification
| AV Interface: | HDMI |
| Interface Standard | HDMI 2.0 |
| Supported Bandwidth | 18Gbps |
| Maximum Distance | 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit, 100m (328.08ft) - 1920x1080@60Hz |
| Maximum Resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP Support | 2.2 |
| EDID Pass Through | Pass-through |
| Supported Audio | HDMI Audio Pass-through, TosLink (Optical) Up to 5.1Ch, 3.5mm Up to 2.0Ch |
| Separate Audio Ports | TosLink (Optical), 3.5mm |
| IR Support | 20KHz – 60KHz |
| CEC Support | Pass-through |
| Serial Interface | RS-232 |
| Transmission Medium | Cat.6 |
| Wavelength (only for Fibre) | 1310 and 1550nm (with supplied SFP+ module) |
| Chipset | VS2310TX-A1 |
| Special Features | HDMI Loop Out Port, PoC (Power over Cat.6), ARC Support |
| Transmitter Input | HDMI Type A (Female), 3.5mm Audio (Female) |
| Transmitter Output: | RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) |
| Receiver Input | RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) |
| Receiver Ouput | HDMI Type A (Female), 3.5mm Audio (Female) |
| Bidirectonal Ports | RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) |
| Power | 5.5/2.1mm |
| Dimensions (approx.) WxDxH | 163x90x16mm (6.42x3.54x0.63in) per unit |
| Housing Material | Metal |
| Net Weight | 0.77kg (1.7lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power Requirements | 5VDC 1A |
| Colour | Black |
