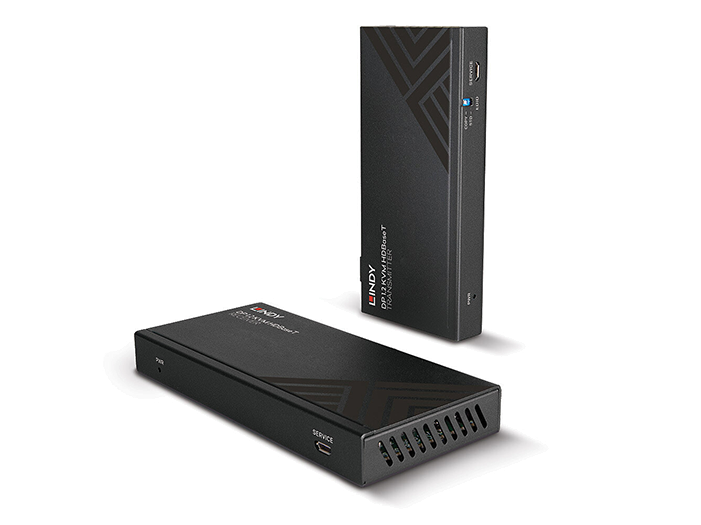

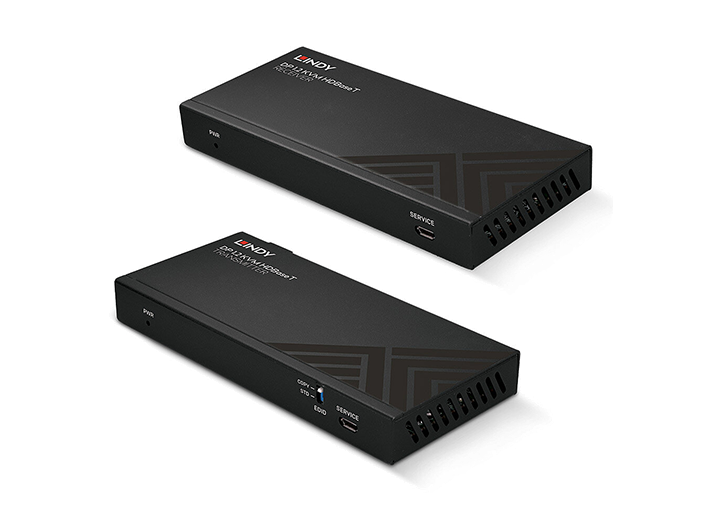

Lindy 150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender

  • NG # 02336-HW-LIndy-013

The Lindy Cat.6 DisplayPort 1.2 & USB HDBaseT KVM Extender is an high-end, reliable solution for extending high quality 4K DisplayPort signals over long distances with standard Cat.6 network cable.

Manufactured By :
Lindy
Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
5 in stock

Custom Pricing

Get A Quote

Overview

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, this provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

This extender also supports lossless audio formats including Dolby TrueHD and DTS-HD to add powerful multi-channel sound to video content, providing an enhanced experience and sense of immersion for the viewer. USB KM connectivity via 2 USB HID ports allow for a keyboard and mouse at the receiver to control a DP equipped PC from a remote PC setup, which can be stored in a secure or controlled temperature environment, while seamlessly providing consistent video content from the source.

Specification

  • AV Interface: DisplayPort
  • Interface Standard: DisplayPort 1.2, USB 1.1
  • Supported Bandwidth: 21.6Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Dip Switch with copy function
  • Supported Audio: Pass Through
  • Separate Audio Ports: -
  • IR Support: 20 - 60KHz
  • CEC Support: -
  • Serial Interface: RS-232 Pass Through
  • Transmission Protocol: HDBaseT
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS010-A0
  • Special Features: Bi-directional IR, RS-232 and PoC

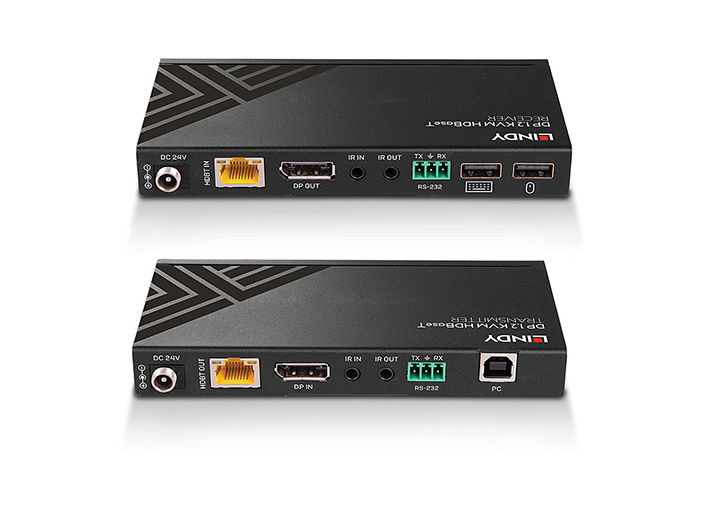

Connectors

  • Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
  • Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block
  • Power: 5.5/2.1mm

Physical Properties

  • Dimensions (approx.) WxDxH: 140x65x18mm (5.51x2.56x0.71in) each unit
  • Housing Material: Metal
  • Net Weight: 0.8kg (1.76lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 245x75x185mm (9.65x2.95x7.28in)
  • Gross Weight: 1.02kg (2.25lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Package Contents

  • HDBaseT DP KVM Extender, Transmitter
  • HDBaseT DP KVM Extender, Receiver
  • USB 2.0 Type A to Type B cable, 1.5m
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual
