NG # 00400-HW-LINDY-29
Designed to distribute HD video signals over long distances the HDMI over IP Extender is a cost effective solution for digital signage, presentation and demonstration applications
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing

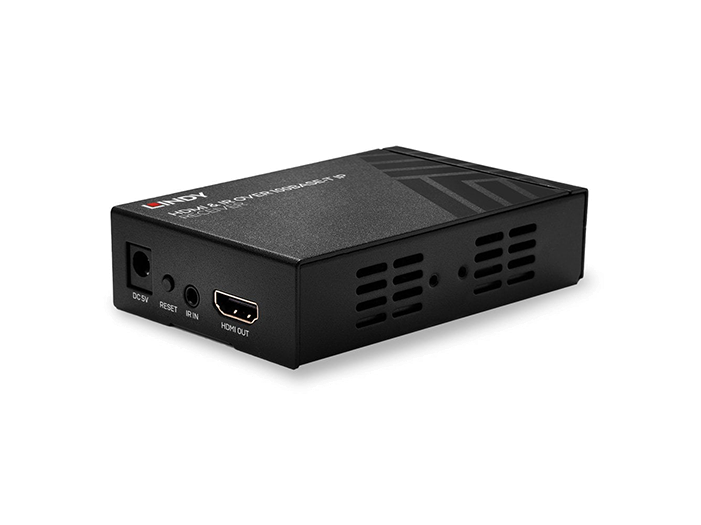

Get A QuoteThe HDMI over IP Extender is capable of broadcasting 1080p Full HD over a standard network*, in 1 to 1, 1 to many and many to many configurations. Using up to 3 layers of active network equipment to distribute signals the HDMI over IP Extender is ideal for distributing video content throughout large buildings such as schools, hotels, hospitals, shops, shopping centres and business premises. The HDMI over IP Extender is sold with Transmitter and Receiver units included with additional Receivers available separately providing the ultimate in flexibility at the point of installation and the ability to easily expand the installation at a later date.
Specification
| Ideal for | schools, hotels, hospitals, shops, shopping centres and business premises |
| Contents | Transmitter unit, receiver unit, IR emitter cable, IR receiver cable, multi-country power supply (EU, UK, US & AUS) and manual |
| Housing Material | Metal |
| Extend HDMI signals | over a Ethernet Network or 100m using a single CAT6 cable |
| Designed | digital signage, presentations and demonstrations |
| Supports resolutions | up to 1080p with 8 bit colour and HDCP |
| Maximum Resolution | 1920x1080@60Hz 4:4:4 8bit |
| Supported Bandwidth | 4.95 Gbps |
| AV Interface | HDMI, Interface Standard: HDMI 1.2 |
| Transmitter Input | HDMI (Female), Transmitter Output: RJ45 (Female), IR (Female) |

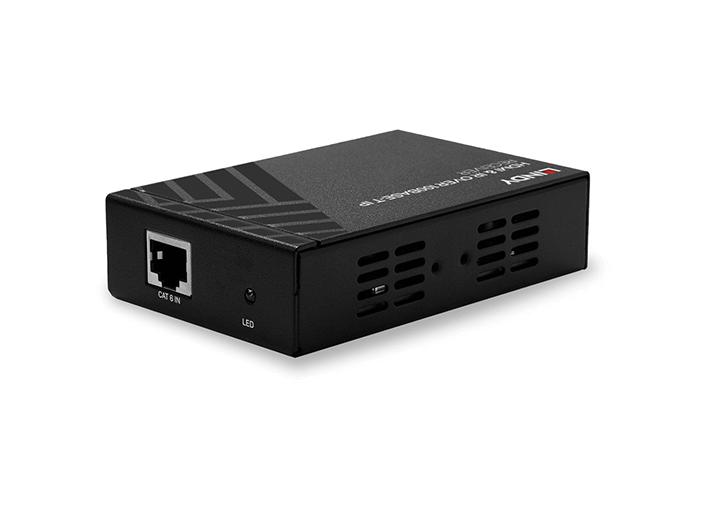

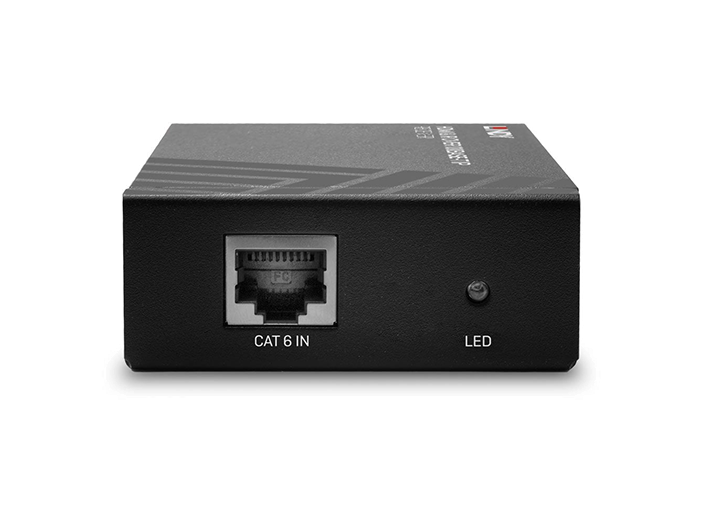

| Receiver Input | RJ45 (Female), IR (Female) |

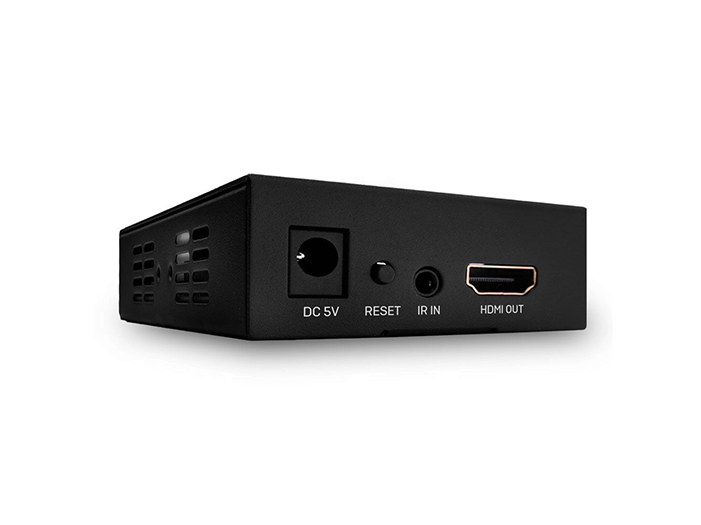

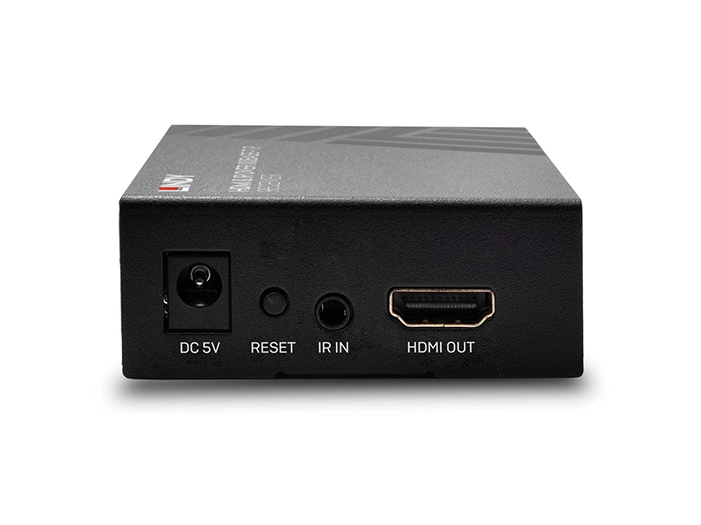

| Receiver Output | HDMI (Female) |
