NG # 03388-HW-stiweb-008
MF # CMCP-HR4
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing
Get A QuoteDesigned as the base unit for a low-cost full-time monitoring system for up to four 4-20 mA Vibration Sensors. Monitor and view the highest Vibration reading by connecting the CMCP730D Alarm and Display Module.

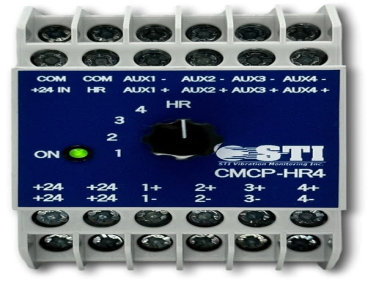

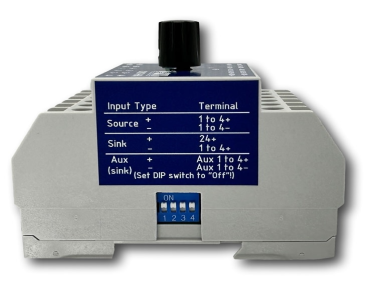

The CMCP-HR4 takes four 4-20 mA Inputs and either Source (supplying power) or Sink (passive). It converts the Inputs to 1.0 to 5.0 VDC Outputs with the highest available on the High Read Output. Any of the 4 Channels can be selected to output on the HR Terminal or if selector is left in the HR position the highest of the 4 will be outputted. When used with a CMCP730D Alarm and Display Module the actual engineering units can be viewed.
A low-cost on-line monitoring system can be easily put together using up to four 4-20 mA Velocity Sensors, a single CMCP-HR4, and a CMCP730D Alarm and Display Module. A second CMCP-HR4 and CMCP730D can be added for 4-20 mA Dual Parameter Sensor Temperature Outputs.
