CMCP-HR4VT Four Channel High Read Monitoring System

  • NG # 03389-HW-stiweb-009

Manufactured By :
stiweb
Ask For Price

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

The CMCP-HR4VT takes four 4-20 mA Inputs and converts the Inputs to 1.0 to 5.0 VDC Outputs with the highest available on the High Read Output. Any of the 4 Channels can be selected to output on the Alarm Display or if selector is left in the HR position the highest of the 4 will be outputted. The CMCP730D Alarm and Display Module shows the actual engineering units at a glance.

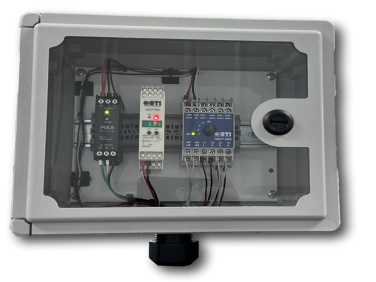

The low-cost on-line monitoring system accommodates up to four 4-20 mA Velocity Sensors, a single CMCP-HR4, a CCP515-0625 Power Supply and a CMCP730D Alarm and Display Module. A second CMCP-HR4T and CMCP730D can be added for 4-20 mA Dual Parameter Sensor Temperature Outputs (CMCP420VT or CMCP422VTT).

Specification

  • For Four 4-20 mA Sensors (Selectable)
  • Alarm and Display Module (Alert and Danger)
  • +24 VDC Power Suppl
  • Fiberglass or Stainless-Steel Enclosure
  • High Read Output (1-5VDC
  • Auxiliary Terminals for Second Loop Device
  • Power On Green LED
  • Din Rail Mounted
  • Optional Modbus TPC Connection
