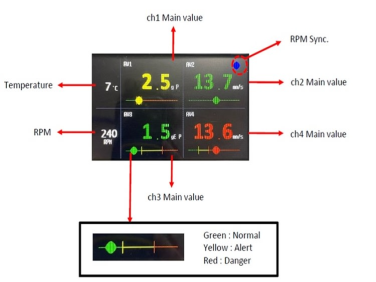

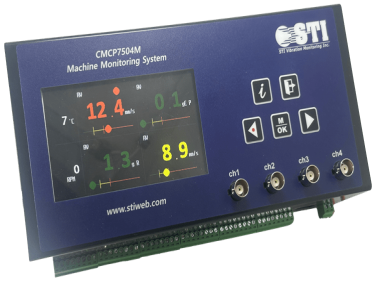

Get A QuoteThe CMCP7504M is a powerful compact four channel continuous machine protection system for early fault detection and prevention. The CMCP7504M continuously monitors up to four inputs from IEPE accelerometers and provides a local display with bar graphs and alarm limits, in addition to 4-20mA, relay and Modbus outputs. Each input can be programmed to monitor in either acceleration, velocity or demodulation for bearing condition, also known as Enveloped Acceleration. All three parameters are displayed on a sub-menu on the display. The CMCP7504M is also capable of accepting a temperature signal and speed signal from external sensors. Speed and temperature alarms can be tied to a specific channel, allowing you to alarm in the event of alarm condition. Upon alarm, the CMCP7504 will record the sensors raw signal and store the data on a removable micro-SD card which can then be imported to a software program to look at the FFT and time waveform. The overall value from each channel is also stored on the micro-SD card with a timestamp for trending. The CMCP7504M can be programmed using a Windows based PC and STI’s CMCP7504M Configuration Utility.
