Fluke Networks MicroScanner™ Cable Verifier

  • NG # 01505-HW-Fluke-021

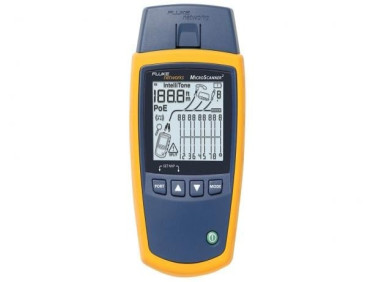

The MicroScanner2 Cable Verifier helps find common errors quickly, displaying results from what were four different test modes all at once on its oversized, backlit LCD display: graphical wire map, pair lengths, distance to fault, cable ID, and far-end device.

Manufactured By :
fluke

Stock
Limited

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

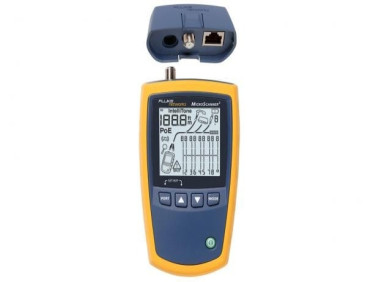

Its integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing, with no need for awkward adapters. The end result is reduced test time and technician error — which makes high-quality installations more efficient and troubleshooting easier.

Specification

Specification

Operating temperature32 °F to 113 °F (0 °C to 45 °C)
Storage temperature-4 °F to +140 °F (-20 °C to +60 °C)
Operating relative humidity (% RH without condensation)90 % (50 °F to 95 °F 10 °C to 35 °C)
75 % (95 °F to 113 °F 35 °C to 45 °C)
Shock and VibrationRandom, 2 g, 5 Hz-500 Hz (Class 2)
1 m drop test with and without wiremap adapter attached
SafetyIEC 61010-1 3rd Edition
Altitude4,000 m; Storage: 12,000 m
EMCIEC 61326-1
General specifications
Test connectorsShielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
PowerBattery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Dimensions and weight (with batteries installed and wiremap adapter attached)3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
MicroScanner2: 10.6 oz (300 g)
DisplayMonochrome LCD with backlight
