Fluke Networks SFPOWERMETER SimpliFiber Pro Optical Power Meter

  • NG # 00444-HW-Fluke-004

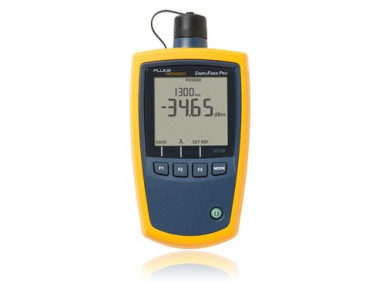

Fluke Networks SFPOWERMETER SimpliFiber Pro Optical Power Meter

Manufactured By :
fluke

Stock
Limited

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
Limited

Custom Pricing

Get A Quote

Overview

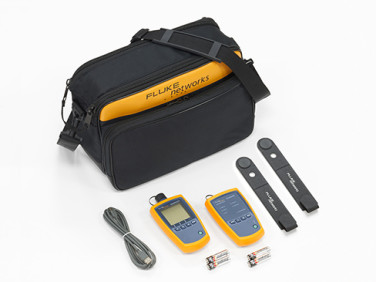

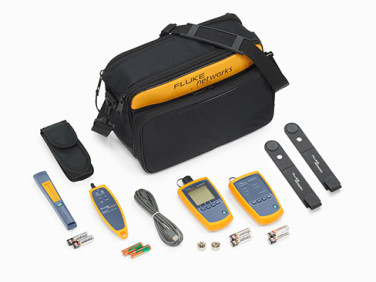

SimpliFiber® Pro Optical Power Meter and Fiber Test Kits provide you with all the tools you need to help you verify proper installation and maintain fiber-optic cabling systems. Available in kits or a la carte, these tools are simple and effective and provide you with the capability to measure loss and power levels, locate faults and polarity issues, and inspect connector end-faces.

Specification

Specification

Detector TypeInGaAs
Calibrated Wavelengths850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
Measurement Range• +10 to -52 dBm (850 nm)
• +10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)
Power Measurement Linearity• ±0.2 dB (850 nm)¹
• ±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)²
Power Measurement Uncertainty³±0.25 dB
Display Resolution, dB or dBm0.01 dB
Auto Dual-Wavelength SwitchingYes
Power Display UnitsdBm, mW, µW
Auto-Wavelength DetectionYes
Data Storage1000 records, multiple wavelengths per record
External InterfaceUSB, 2.0 full speed
Optical ConnectorRemovable adapter, SC adapter as default, optional adapters include LC, ST
Display update rate1 reading per second
ReferenceIndividually set for each wavelength
FindFiber ID detectionYes
Power Requirement2 AA Alkaline batteries
Battery Life4> 50 Hours (typical)
Automatic Power Off10, 20, 30 or 60 minutes (can be disabled by user)
Low Battery WarningYes, low battery icon blinks
Size (L x W x H)6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm)
Weight11.5 oz (325 grams)
